MS8005D

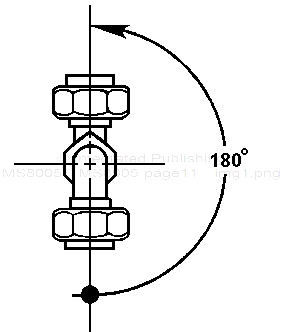

NOTE: Angular alignment shall be measured in degrees with a tolerance of ±2°.
FIGURE 13. Measurement of angular alignment between elbow fittings.
Elbow fitting ovality: See table XV.
TABLE XV. Elbow fitting ovality. 1/
Assembly size |
3/4 |
4 |
5 |
6 |
8 |
10 |
12 |
16 |
20 |
24 |
Ball diameter |
0.080 |
0.119 |
0.174 |
0.230 |
0.313 |
0.391 |
0.515 |
0.750 |
0.969 |
1.188 |
1/ The fitting elbow bend shall be examined for ovality by rolling a ball of applicable diameter through
the elbow fitting. The ball shall pass freely through the fitting elbow bend.
11
