MS8005D
FIGURE 9. Style J hose assembly. Hose assembly dimensions for style K: See table X.
TABLE X. Hose assembly dimensions for style K. 1/
Fitting ends |
Hose size |
Dimensions 2/ |
|||||||
1 |
2 |
A (nom) |
C (max) |
D (max) |
E (max) |
F (max) |
G (min) |
G (max) |
|
|
45° |
45° |
8 |
0.438 |
0.880 |
1.722 |
1.332 |
1.014 |
0.445 |
0.632 |
10 |
0.515 |
0.967 |
2.037 |
1.488 |
1.158 |
0.501 |
0.688 |
||
12 |
0.570 |
1.122 |
2.368 |
1.667 |
1.447 |
0.588 |
0.775 |
||
16 |
0.620 |
1.480 |
2.583 |
1.879 |
1.736 |
0.609 |
0.857 |
||
20 |
0.640 |
1.750 |
2.946 |
2.058 |
2.328 |
0.697 |
1.017 |
||
24 |
0.765 |
2.150 |
3.210 |
2.400 |
2.621 |
0.785 |
1.127 |
||
1/ Style K uses class 2 fittings which are made from a combination of aluminum and CRES.
2/ Dimensions are shown on figure 10.

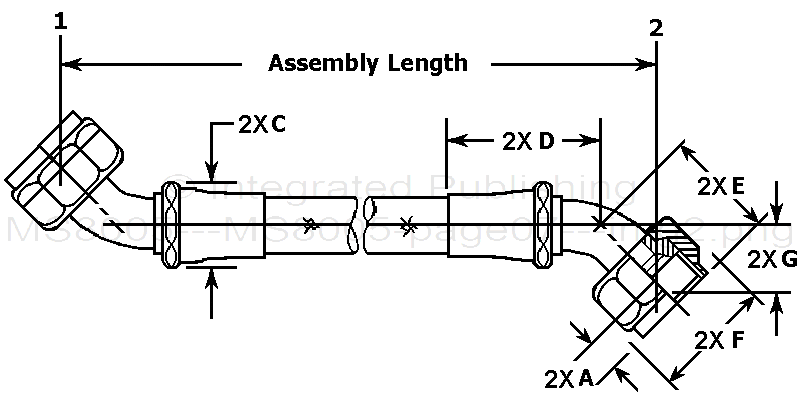

FIGURE 10. Style K hose assembly.
7
