INCH-POUND MS8005D
24 September 2003
SUPERSEDING MS8005C
15 April 1991
DETAIL SPECIFICATION SHEET
HOSE ASSEMBLY, POLYTETRAFLUOROETHYLENE, PERMANENTLY ATTACHED FITTINGS, HIGH TEMPERATURE, MEDIUM PRESSURE, FLARE-TO-FLARE
This specification is approved for use by all
Departments and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification and
MIL-DTL-25579.
Hose assembly dimensions for style A: See table l.
TABLE I. Hose assembly dimensions for style A. 1/
Fitting ends |
Hose size |
Dimensions 2/ |
||||
1 |
2 |
A (nom) |
B ( max) |
C (max) |
F (max) |
|
Straight |
Straight |
3/4 |
0.372 |
1.049 |
0.620 |
0.580 |
4 |
0.375 |
1.049 |
0.620 |
0.654 |
||
5 |
0.380 |
1.194 |
0.680 |
0.726 |
||
6 |
0.380 |
1.303 |
0.750 |
0.798 |
||
8 |
0.438 |
1.465 |
0.880 |
1.014 |
||
10 |
0.515 |
1.680 |
0.967 |
1.158 |
||
12 |
0.570 |
1.727 |
1.122 |
1.447 |
||
16 |
0.620 |
2.101 |
1.480 |
1.736 |
||
20 |
0.640 |
2.255 |
1.750 |
2.328 |
||
24 |
0.765 |
2.400 |
2.150 |
2.621 |
||
1/ Style A uses class 1 fittings which are made from corrosion resistant steel (CRES).
2/ Dimensions are shown on figure 1.

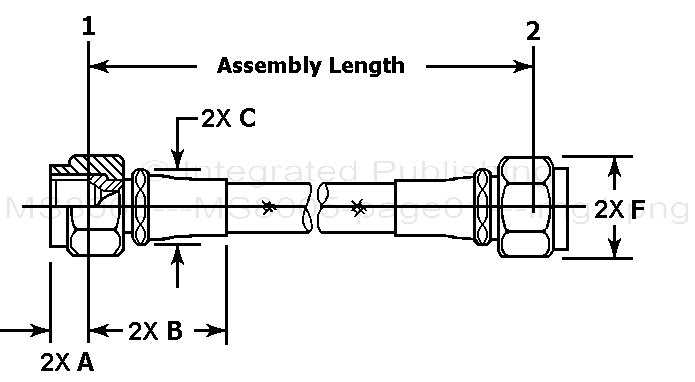

FIGURE 1. Style A hose assembly.
AMSC N/A 1 of 12 FSC 4720
DISTRIBUTION STATEMENT A. Approved for public release; distribution is unlimited.
