MIL-DTL-27516G

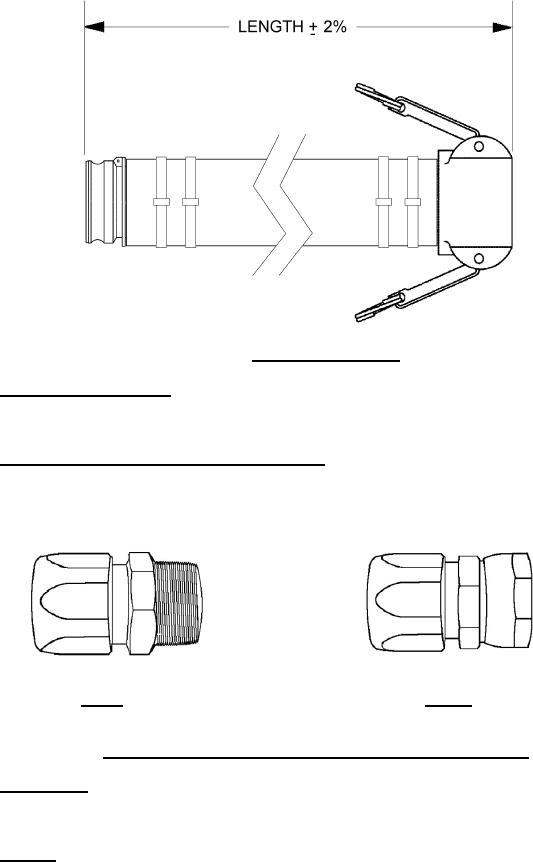

FIGURE 2. Hose assembly length.
3.3.2.4 Hose assembly couplings. The hose assembly end fittings shall conform to the general
configuration shown on figures 1, 2, and 3. The end fittings shall be retained on the assembly without
slipping or leaking when coupled to the hose and tested as specified herein.
3.3.2.5 Reattachable screw-on male or female couplings. Reattachable screw-on male or female
couplings shall be in accordance with SAE-AS38404 type I or type II and if not specified, the default for
class shall be class 1 of SAE-AS38404, see figure 3.
Type I
Type II
FIGURE 3. Reattachable screw-on male or female couplings SAE-AS38404.
3.3.2.6 Hose shanks. Hose shanks shall be in accordance with A-A-59326/2 (type II) or A-A-59326/6
(type VI) coupling halves of A-A-59326 and if not specified, the default for class shall be class 1 of
A-A-59326, see figure 4.
3.3.2.7 Gaskets. Female coupling halves shall contain gaskets in accordance with A-A-59326.
9
