MS8008C
Hose assembly size code: See table XX.
TABLE XX. Hose assembly size code.
Size |
Reference tube OD |
Size code |
8 |
0.500 |
H |
10 |
0.625 |
J |
12 |
0.750 |
K |
16 |
1.000 |
M |
20 |
1.250 |
N |
24 |
1.500 |
p |

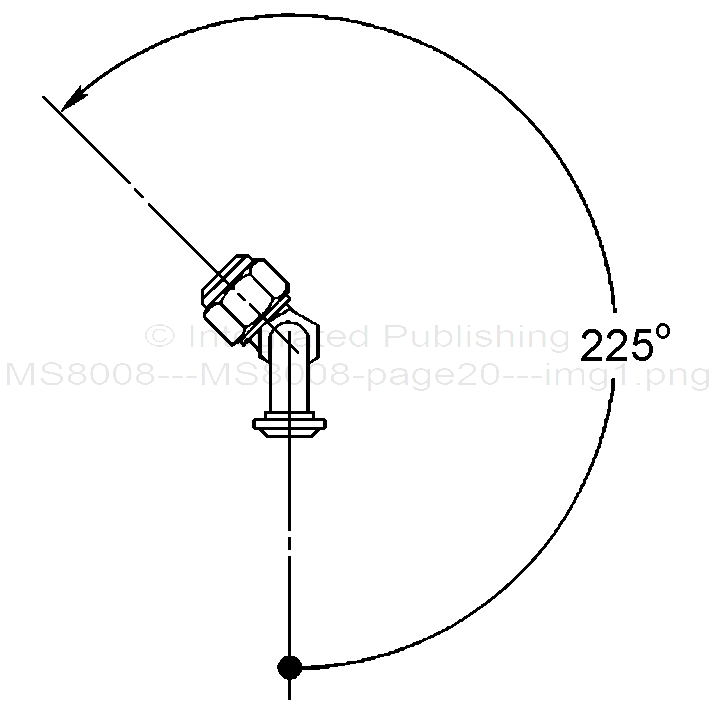

NOTE: Angular alignment shall be measured in degrees with a tolerance of ±2°.
FIGURE 19. Measurement of angular alignment between elbow fittings.
TABLE XXI. Elbow fitting ovality. 1/
Assembly size |
8 |
10 |
12 |
16 |
20 |
24 |
Ball diameter |
0.313 |
0.391 |
0.515 |
.758 |
.969 |
1.188 |
1/ The fitting elbow bend shall be examined for ovality by rolling a ball of applicable diameter through
the elbow fitting. The ball shall pass freely through the fitting elbow bend.
20
