INCH-POUND
MS8008C
24 September 2003
SUPERSEDING MS8008B
30 June 1985
DETAIL SPECIFICATION SHEET
HOSE ASSEMBLY, POLYTETRAFLUOROETHYLENE, PERMANENTLY ATTACHED FITTINGS, HIGH TEMPERATURE, MEDIUM PRESSURE, FLARELESS-TO-FLANGE
This specification is approved for use by all
Departments and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification and
MIL-DTL-25579.
Hose assembly dimensions for style A: See table l.
TABLE I. Hose assembly dimensions for style A. 1/
Fitting ends |
Hose size |
Dimensions 2/, 3/, 4/, 5/ |
||||||
1 |
2 |
A (nom) |
B ( max) |
C (max) |
F (max) |
M (max) |
P (max) |
|
8 |
0.310 |
1.640 |
0.880 |
1.014 |
1.560 |
0.875 |
||
10 |
0.356 |
1.940 |
0.967 |
1.158 |
1.570 |
1.000 |
||
Straight |
Straight |
12 |
0.393 |
1.913 |
1.122 |
1.447 |
1.640 |
1.250 |
16 |
0.429 |
2.298 |
1.480 |
1.736 |
1.750 |
1.500 |
||
20 |
0.393 |
2.577 |
1.750 |
2.328 |
1.990 |
1.844 |
||
24 |
0.398 |
2.800 |
2.150 |
2.621 |
2.260 |
2.125 |
||
1/ Style A uses class 1 fittings which are made from corrosion resistant steel (CRES).
2/ Dimensions are shown on figure 1.
3/ Dimensions "A" and "B" are based on end of MS8000 series seal.
4/ Assembly length (see PIN) is based on end of MS8000 series seal to face of flange.
5/ Apply NAS 1760 in accordance with MIL-DTL-25579/1, see requirements.

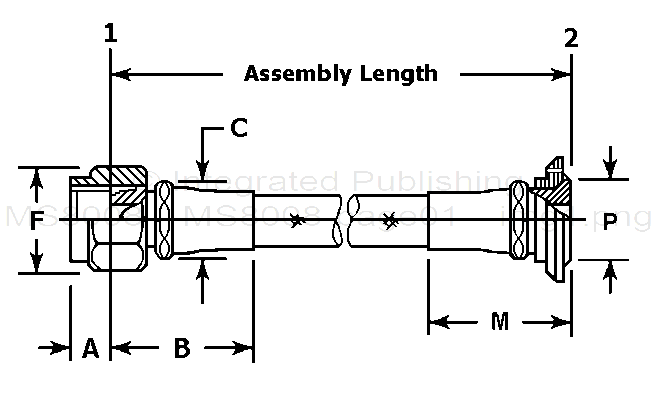

FIGURE 1. Style A hose assembly.
AMSC N/A 1 of 21 FSC 4720
DISTRIBUTION STATEMENT A. Approved for public release; distribution is unlimited.
