MS8008C
Hose assembly dimensions for style P: See table XIIl.
TABLE XIII. Hose assembly dimensions for style P. 1/
Fitting ends |
Hose size |
Dimensions 2/, 3/, 4/, 5/ |
|||||||||||
A (nom) |
C (max) |
D (max) |
E (max) |
F (max) |
G (min) |
G (max) |
N (max) |
P (max) |
R (min) |
R (max) |
|||
1 |
2 |
||||||||||||
8 |
0.310 |
0.880 |
1.722 |
1.426 |
1.014 |
0.542 |
0.789 |
0.606 |
0.875 |
0.303 |
0.428 |
||
10 |
0.356 |
0.967 |
2.037 |
1.596 |
1.158 |
0.631 |
0.877 |
0.658 |
1.000 |
0.340 |
0.465 |
||
45° |
45° |
12 |
0.393 |
1.122 |
2.368 |
1.739 |
1.447 |
0.631 |
0.952 |
0.789 |
1.250 |
0.433 |
0.558 |
16 |
0.429 |
1.480 |
2.583 |
1.931 |
1.736 |
0.741 |
1.069 |
0.929 |
1.500 |
0.470 |
0.657 |
||
20 |
0.393 |
1.750 |
2.946 |
2.084 |
2.328 |
0.863 |
1.196 |
1.020 |
1.844 |
0.534 |
0.721 |
||
24 |
0.398 |
2.150 |
3.210 |
2.376 |
2.621 |
1.012 |
1.376 |
1.186 |
2.125 |
0.589 |
0.839 |
||
1/ Style P uses class 2 fittings which are made from a combination of aluminum and CRES.
2/ Dimensions are shown on figure 13.
3/ Dimensions "A" is based on end of MS8000 series seal.
4/ Assembly length (see PIN) is based on end of MS8000 series seal to face of flange.
5/ Apply NAS 1760 in accordance with MIL-DTL-25579/1, see requirements.

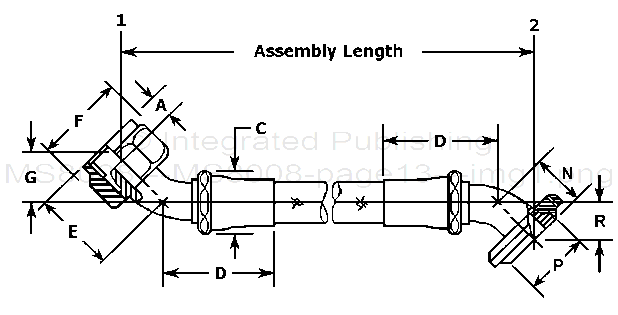

FIGURE 13. Style P hose assembly.
