MS8008C
Hose assembly dimensions for style E: See table V.
TABLE V. Hose assembly dimensions for style E. 1/
Fitting ends |
Hose size |
Dimensions 2/, 3/, 4/, 5/ |
||||||||||||
A (nom) |
C (max) |
D (max) |
E (max) |
F (max) |
G (min) |
G (max) |
p (max) |
S (max) |
T (max) |
u (min) |
u (max) |
|||
1 |
2 |
|||||||||||||
8 |
0.310 |
0.880 |
1.722 |
1.426 |
1.014 |
0.542 |
0.789 |
0.875 |
2.320 |
1.422 |
0.857 |
0.982 |
||
10 |
0.356 |
0.967 |
2.037 |
1.596 |
1.158 |
0.631 |
0.877 |
1.000 |
2.875 |
1.499 |
0.861 |
1.015 |
||
45° |
90° |
12 |
0.393 |
1.122 |
2.368 |
1.739 |
1.447 |
0.631 |
0.952 |
1.250 |
3.606 |
1.807 |
1.032 |
1.246 |
16 |
0.429 |
1.480 |
2.583 |
1.931 |
1.736 |
0.741 |
1.069 |
1.500 |
3.981 |
2.174 |
1.156 |
1.434 |
||
20 |
0.393 |
1.750 |
2.946 |
2.084 |
2.328 |
0.863 |
1.196 |
1.844 |
4.435 |
2.590 |
1.344 |
1.715 |
||
24 |
0.398 |
2.150 |
3.210 |
2.376 |
2.621 |
1.012 |
1.376 |
2.125 |
5.075 |
3.103 |
1.516 |
2.028 |
||
1/ Style E uses class 1 fittings which are made from CRES.
2/ Dimensions are shown on figure 5.
3/ Dimensions "A" is based on end of MS8000 series seal.
4/ Assembly length (see pIN) is based on end of MS8000 series seal to face of flange.
5/ Apply NAS 1760 in accordance with MIL-DTL-25579/1, see requirements.

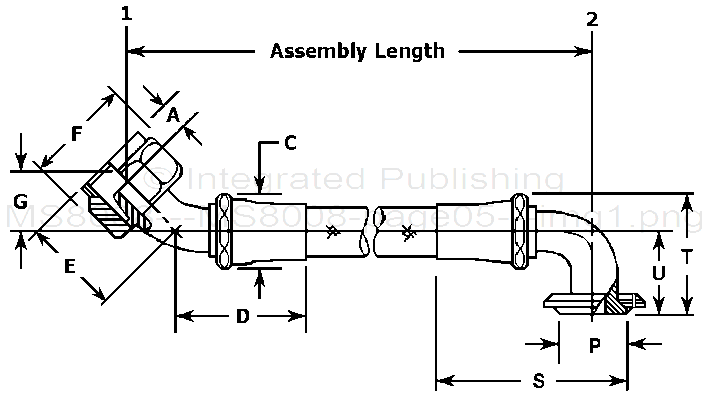

FIGuRE 5. Style E hose assembly.
