MS8008C
Hose assembly dimensions for style J: See table lX.
TABLE IX. Hose assembly dimensions for style J. 1/
Fitting ends |
Hose size |
Dimensions 2/, 3/, 4/, 5/ |
||||||||||||
A (nom) |
C (max) |
D (max) |
F (max) |
H (max) |
J (max) |
K (min) |
K (max) |
N (max) |
p (max) |
R (min) |
R (max) |
|||
1 |
2 |
|||||||||||||
8 |
0.310 |
0.880 |
1.722 |
1.014 |
2.495 |
2.032 |
1.032 |
1.282 |
0.606 |
0.875 |
0.303 |
0.428 |
||
10 |
0.356 |
0.967 |
2.037 |
1.158 |
2.955 |
2.437 |
1.357 |
1.607 |
0.658 |
1.000 |
0.340 |
0.465 |
||
90° |
45° |
12 |
0.393 |
1.122 |
2.368 |
1.447 |
3.705 |
2.795 |
1.591 |
1.841 |
0.789 |
1.250 |
0.433 |
0.558 |
16 |
0.429 |
1.480 |
2.583 |
1.736 |
4.100 |
3.160 |
1.741 |
1.991 |
0.929 |
1.500 |
0.470 |
0.657 |
||
20 |
0.393 |
1.750 |
2.946 |
2.328 |
4.835 |
3.664 |
2.021 |
2.396 |
1.020 |
1.844 |
0.534 |
0.721 |
||
24 |
0.398 |
2.150 |
3.210 |
2.621 |
5.480 |
4.251 |
2.403 |
2.778 |
1.186 |
2.125 |
0.589 |
0.839 |
||
1/ Style J uses class 1 fittings which are made from CRES.
2/ Dimensions are shown on figure 9.
3/ Dimensions "A" is based on end of MS8000 series seal.
4/ Assembly length (see pIN) is based on end of MS8000 series seal to face of flange.
5/ Apply NAS 1760 in accordance with MIL-DTL-25579/1, see requirements.

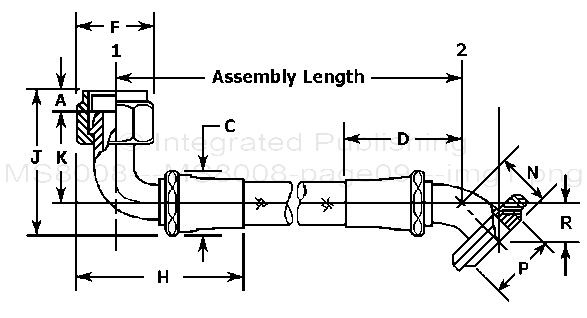

FIGURE 9. Style J hose assembly.
9
