MS8007C

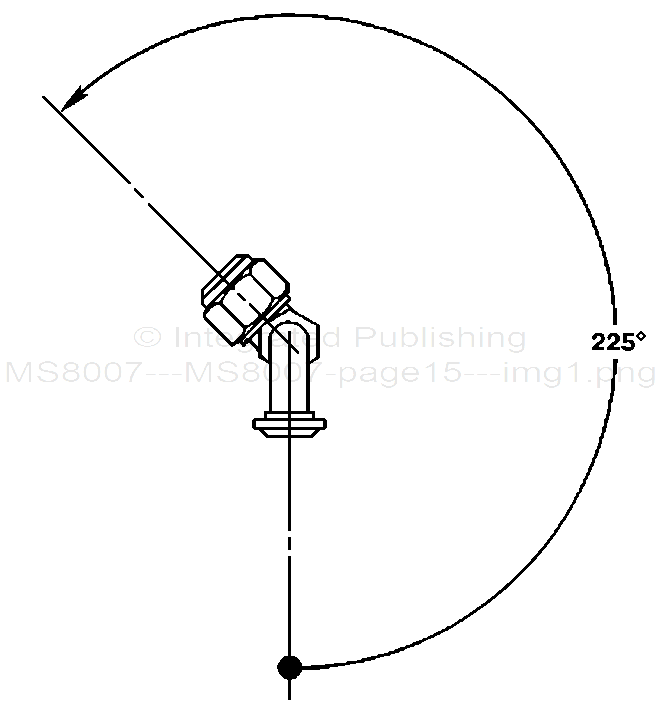

NOTE: Angular alignment shall be measured in degrees with a tolerance of ±2°.
FIGURE 19. Measurement of angular alignment between elbow fittings.
TABLE XXI. Elbow fitting ovality. 1/
Assembly size |
8 |
10 |
12 |
16 |
20 |
24 |
Ball diameter |
0.313 |
0.391 |
0.515 |
0.750 |
0.969 |
1.188 |
1/ The fitting elbow bend shall be examined for ovality by rolling a ball of applicable diameter through the elbow fitting. The ball shall pass freely through the fitting elbow bend.
15
