MS8009C

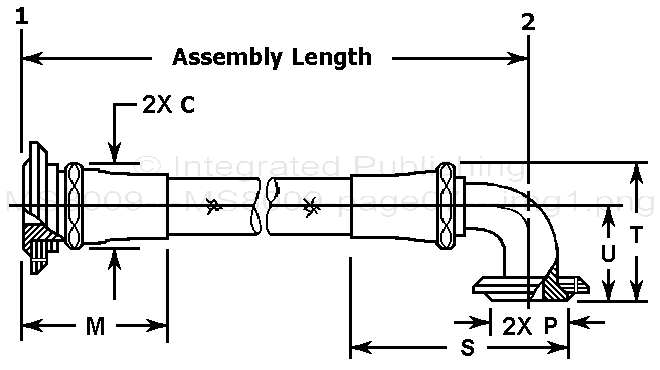

FIGURE 9. Style J hose assembly. Hose assembly dimensions for style K: See table X.
TABLE X. Hose assembly dimensions for style K. 1/
Fitting ends |
Hose size |
Dimensions 2/ |
||||||
1 |
2 |
C (max) |
D (max) |
N (max) |
P (max) |
R (min) |
R (max) |
|
|
45° |
45° |
8 |
0.880 |
1.722 |
0.606 |
0.875 |
0.303 |
0.428 |
10 |
0.967 |
2.037 |
0.658 |
1.000 |
0.340 |
0.465 |
||
12 |
1.122 |
2.368 |
0.789 |
1.250 |
0.433 |
0.558 |
||
16 |
1.480 |
2.583 |
0.929 |
1.500 |
0.470 |
0.657 |
||
20 |
1.750 |
2.946 |
1.020 |
1.844 |
0.534 |
0.721 |
||
24 |
2.150 |
3.210 |
1.186 |
2.125 |
0.589 |
0.839 |
||
1/ Style K uses class 2 fittings which are made from a combination of aluminum and CRES.
2/ Dimensions are shown on figure 10.
FIGURE 10. Style K hose assembly.
7
