MS8006C
Hose assembly dimensions for style N: See table XII.
TABLE XII. Hose assembly dimensions for style N. 1/
Fitting ends |
Hose size |
Dimensions 2/, 3/, 4/, 5/ |
|||||||
1 |
2 |
A (nom) |
C (max) |
F (max) |
H (max) |
J (max) |
K (min) |
K (max) |
|
|
90ο |
90ο |
8 |
0.310 |
0.880 |
1.014 |
2.495 |
2.032 |
1.032 |
1.282 |
10 |
0.356 |
0.967 |
1.158 |
2.955 |
2.437 |
1.357 |
1.607 |
||
12 |
0.393 |
1.122 |
1.447 |
3.705 |
2.795 |
1.591 |
1.841 |
||
16 |
0.429 |
1.480 |
1.736 |
4.100 |
3.160 |
1.741 |
1.991 |
||
20 |
0.393 |
1.750 |
2.328 |
4.835 |
3.664 |
2.021 |
2.396 |
||
24 |
0.398 |
2.150 |
2.621 |
5.480 |
4.251 |
2.403 |
2.778 |
||
1/ Style N uses class 2 fittings which are made from a combination of aluminum and CRES.
2/ Dimensions are shown on figure 12.
3/ Dimensions "A" is based on end of MS8000 series seal.
4/ Assembly length (see PIN) is based on end of MS8000 series seal to face of flange.
5/ Apply NAS 1760 in accordance with MIL-DTL-25579/1, see requirements.

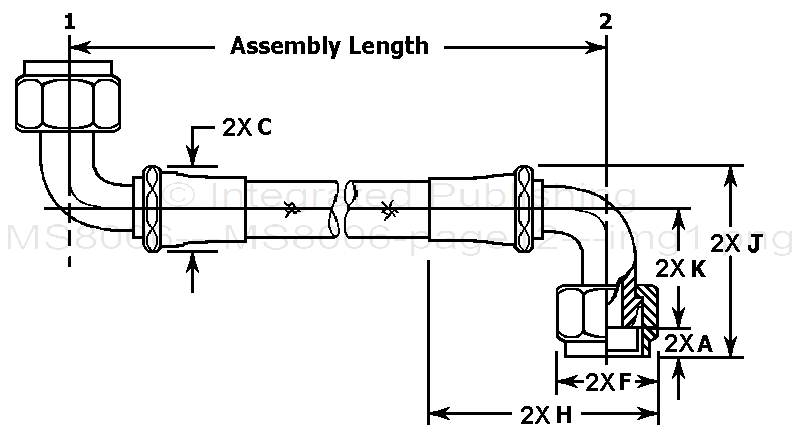

FIGURE 12. Style N hose assembly.
12
