MS8006C
Hose assembly dimensions for style B: See table II.
TABLE II. Hose assembly dimensions for style B. 1/
Fitting ends |
Hose size |
Dimensions 2/, 3/, 4/, 5/ |
||||||||
1 |
2 |
A (nom) |
B (max) |
C (max) |
D (max) |
E (max) |
F (max) |
G (min) |
G (max) |
|
|
Straight |
45° |
3/4 |
0.191 |
1.282 |
0.620 |
1.240 |
0.950 |
0.580 |
0.412 |
0.537 |
4 |
0.222 |
1.222 |
0.620 |
1.490 |
0.970 |
0.654 |
0.404 |
0.529 |
||
5 |
0.235 |
1.340 |
0.680 |
1.495 |
1.017 |
0.726 |
0.428 |
0.553 |
||
6 |
0.230 |
1.469 |
0.750 |
1.610 |
1.122 |
0.798 |
0.506 |
0.631 |
||
8 |
0.310 |
1.640 |
0.880 |
1.722 |
1.426 |
1.014 |
0.542 |
0.789 |
||
10 |
0.356 |
1.940 |
0.967 |
2.037 |
1.596 |
1.158 |
0.631 |
0.877 |
||
12 |
0.393 |
1.913 |
1.122 |
2.368 |
1.739 |
1.447 |
0.631 |
0.952 |
||
16 |
0.429 |
2.298 |
1.480 |
2.583 |
1.931 |
1.736 |
0.741 |
1.069 |
||
20 |
0.393 |
2.577 |
1.750 |
2.946 |
2.084 |
2.328 |
0.863 |
1.196 |
||
24 |
0.398 |
2.800 |
2.150 |
3.210 |
2.376 |
2.621 |
1.012 |
1.402 |
||
1/ Style B uses class 1 fittings which are made from CRES.
2/ Dimensions are shown on figure 2.
3/ Dimensions "A" and "B" are based on end of MS8000 series seal.
4/ Assembly length (see PIN) is based on end of MS8000 series seal to face of flange.
5/ Apply NAS 1760 in accordance with MIL-DTL-25579/1, see requirements.

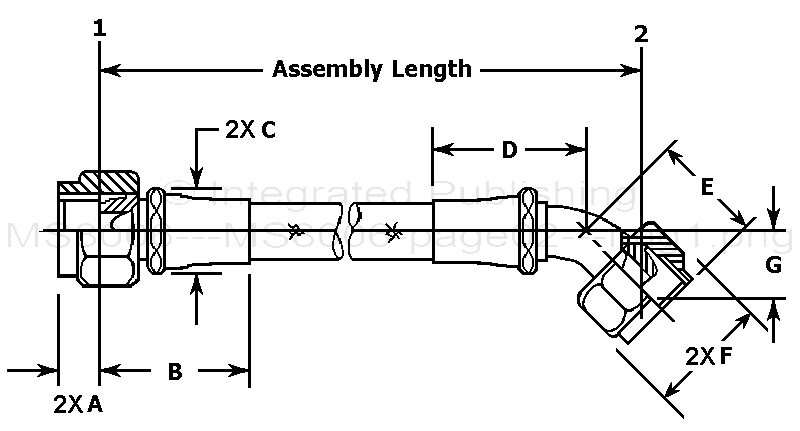

FIGURE 2. Style B hose assembly.
2
