MIL-DTL-8790F
TABLE V. Hose inner tube diameter at the bulge.
Fitting
A diameter, min
size no.
inch (mm) 1/ 2/
4
.146 (3.71)
5
.177 (4.50)
6
.271 (6.88)
8
.365 (9.27)
10
.455 (11.56)
12
.568 (14.43)
16
.778 (19.76)
1/ Diameter A, indicates both the minimum permissible diameter
of the inner tube at the bulge, and the minimum nipple ID of
the fitting, when the fitting is assembled with the hose.
2/ Dimensions are in inches. Metric equivalents are given for
information only.

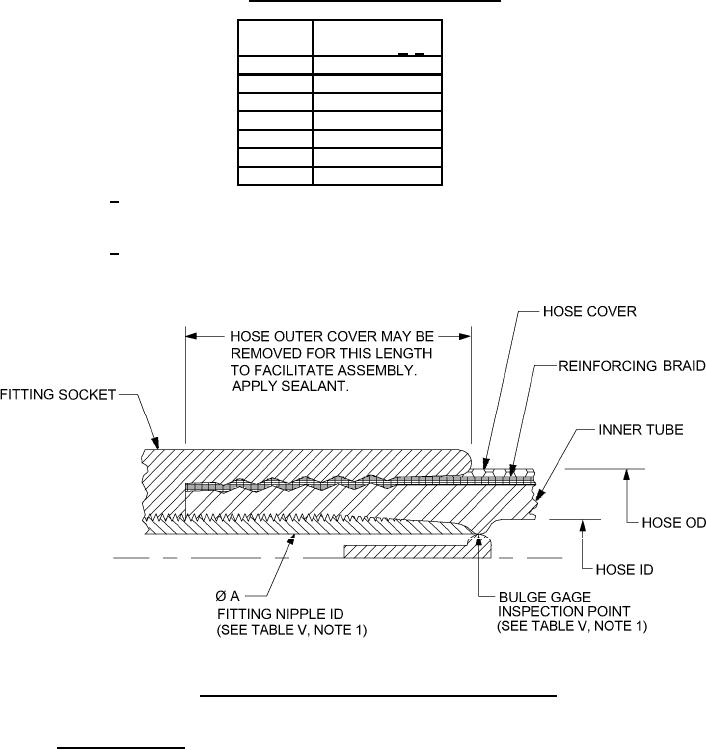

FIGURE 1. Minimum diameter of the hose inner tube at the bulge.
4.9.3 Proof pressure test. Each hose assembly shall be tested in accordance with ASTM D380 and
subjected to the applicable proof pressure listed in table I. Each hose assembly shall meet the
requirements of 3.7.2. The test fluid shall be water or fluid in accordance with MIL-PRF-5606,
MIL-PRF-83282 or MIL-PRF-87257.
11
