MIL-DTL-83796/9C
Angular displacement. Angular displacement shall be as shown on figure 3.
NOTES:
1. Angular displacement for hose assemblies with elbow fittings on both ends shall have the
angular displacement between elbows, measured counter-clockwise from the centerline of the
nearest fitting, positioned at six-o' clock, to the centerline of the other fitting (see SAE-J517).
2. The near end of the connector shall be put in numerical order relative to the far end (see table I).
Example: Near end adapter 45°, far end 90°.
3. Angular displacement shall be measured in degrees with a tolerance of ± 3° for lengths up to 2
feet (61 cm) and ± 5° for all lengths over 2 feet (61 cm).
4. The angular displacement shall be expressed in two digits number of degrees divided.
5. Making the angular determination in the wrong direction will result in an unacceptable part.

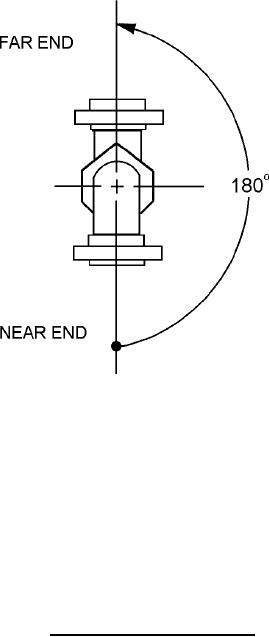

FIGURE 3. Elbow fitting angular alignment.
REQUIREMENTS
Hose assemblies shall be specified on figures 1, 2, and 3.
Fitting flange shall mate with MS20756 and flange installation shall be in accordance with MS33786
as applicable.
Hose assembly length tolerance shall be in accordance with MIL-DTL-83796.
Size codes shall be as specified in table II. Flange fittings not available for sizes -03, -04, -05, and
-06.
