MIL-DTL-83796/9C
NOTES:
1. Drop height B can be found in the applicable MIL-DTL-83798 slash sheet as specified in table I
herein.
2. Hose length "L" is measured from one fitting end to another fitting end.

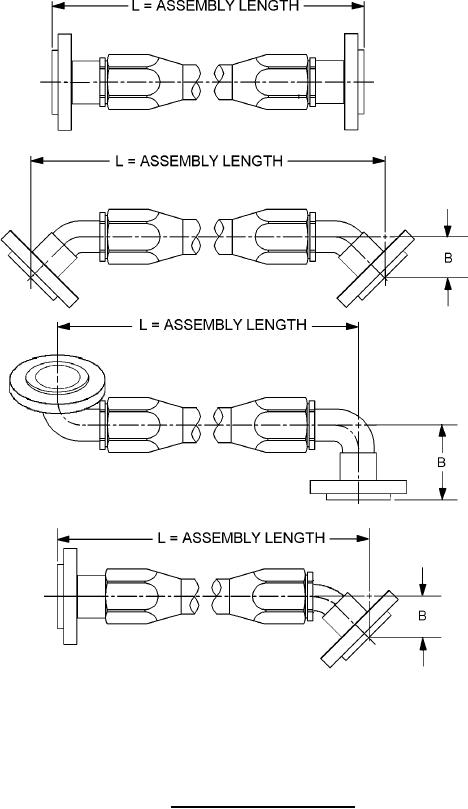

FIGURE 2. Hose assembly dimensions.
