INCH-POUND
MIL-DTL-26666G
10 December 2006
SUPERSEDING
MIL-DTL-26666F
23 April 2004
DETAIL SPECIFICATION
HOSE ASSEMBLY, PNEUMATIC, HIGH PRESSURE
This specification is approved for use by all Departments and
Agencies of the Department of Defense.
1. SCOPE
1.1 Scope. This specification covers the requirements for a hose assembly, pneumatic, high
pressure having a nominal working pressure of 4,000 psig (275.79 bar) in the operating temperature
range of -65 to +160°F (-53.89°C to 71.11°C). DO NOT USE FOR OXYGEN. DO NOT USE ON
AIRCRAFT.

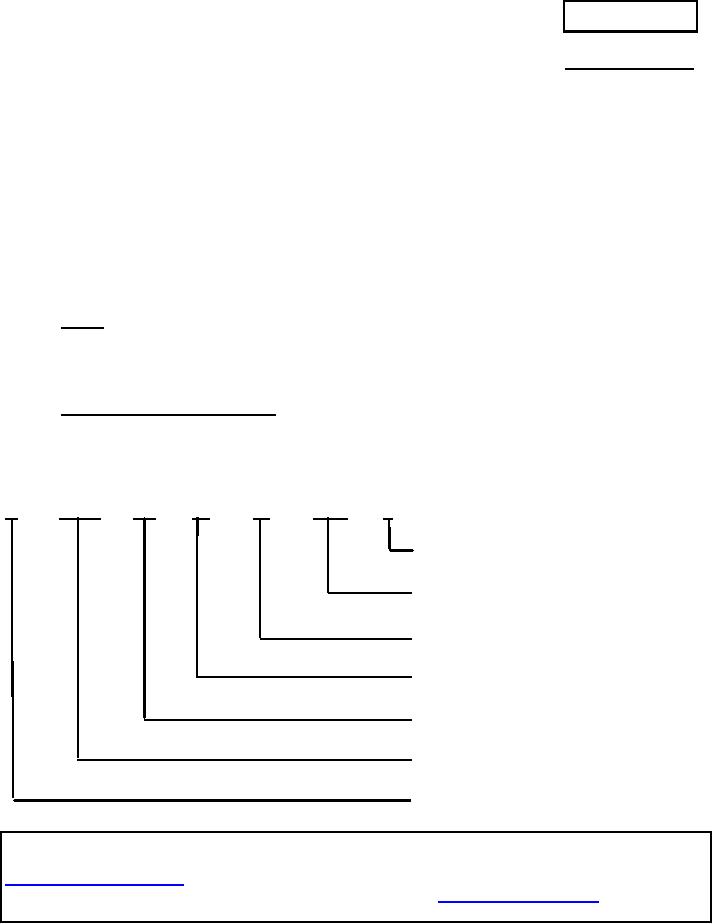

1.2 Part or Identifying Number (PIN). The definitive specification PIN will be formatted to identify
each item covered by this specification. The PIN format will consist of the letter M, specification number,
a dash, a 2 digit number hose size, a dash and a 2 digit fitting size, a dash and 2 a digit fitting size, a
dash hose assembly length in inches (3 digits), fourth digit in 8's of an inch (0 through 7), and coupling
guard "A" (as required) as follows:
M
26666
-04
-04
-06
-0753
A
Fitting guard (see 3.3.2.5) (Required add
"A" - not required leave blank)
Hose assembly length. First 3 digits in inches,
fourth digit in 8's of an inch (0 through 7)
Fitting size dash number from figure 1.
(Jump size see 3.3.2.4)
Fitting size dash number from figure 1.
(Jump size see 3.3.2.4)
Hose size dash number from figure 1.
Specification number
M prefix
