NOTE: Angular alignment shall be measured in degrees with a tolerance of ±2°.

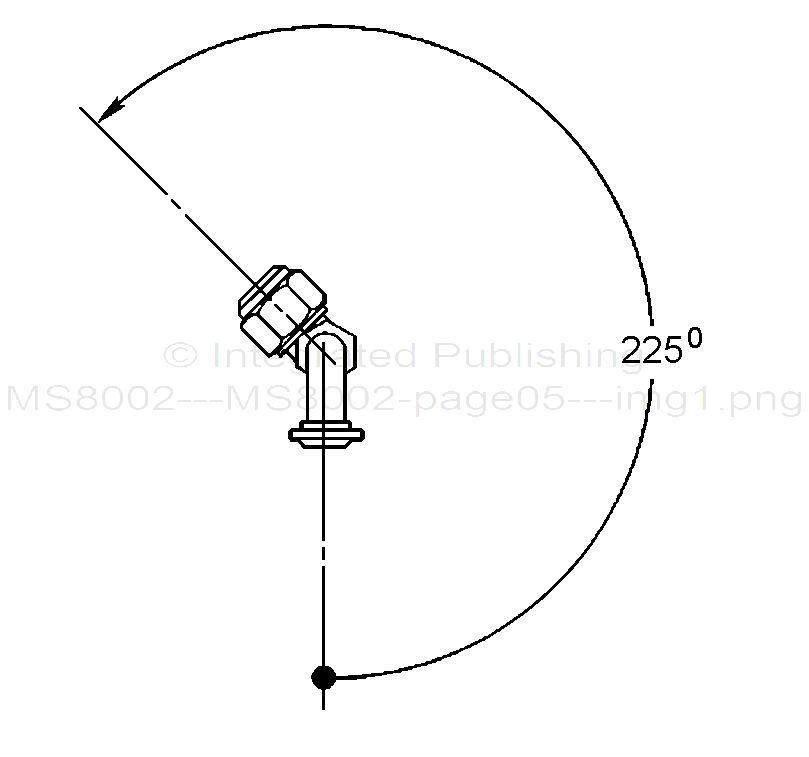

FIGURE 2. Measurement of angular alignment between elbow fittings.
NOTES:
1. Hose assembly length "L" shall be measured, with the hose laid out horizontally and straight between the center of the nipple end and the center of the flange sealing surface, along a straight line parallel to the hose length.
2. See table IV for dimensions of (a), (b), (c) and (d).

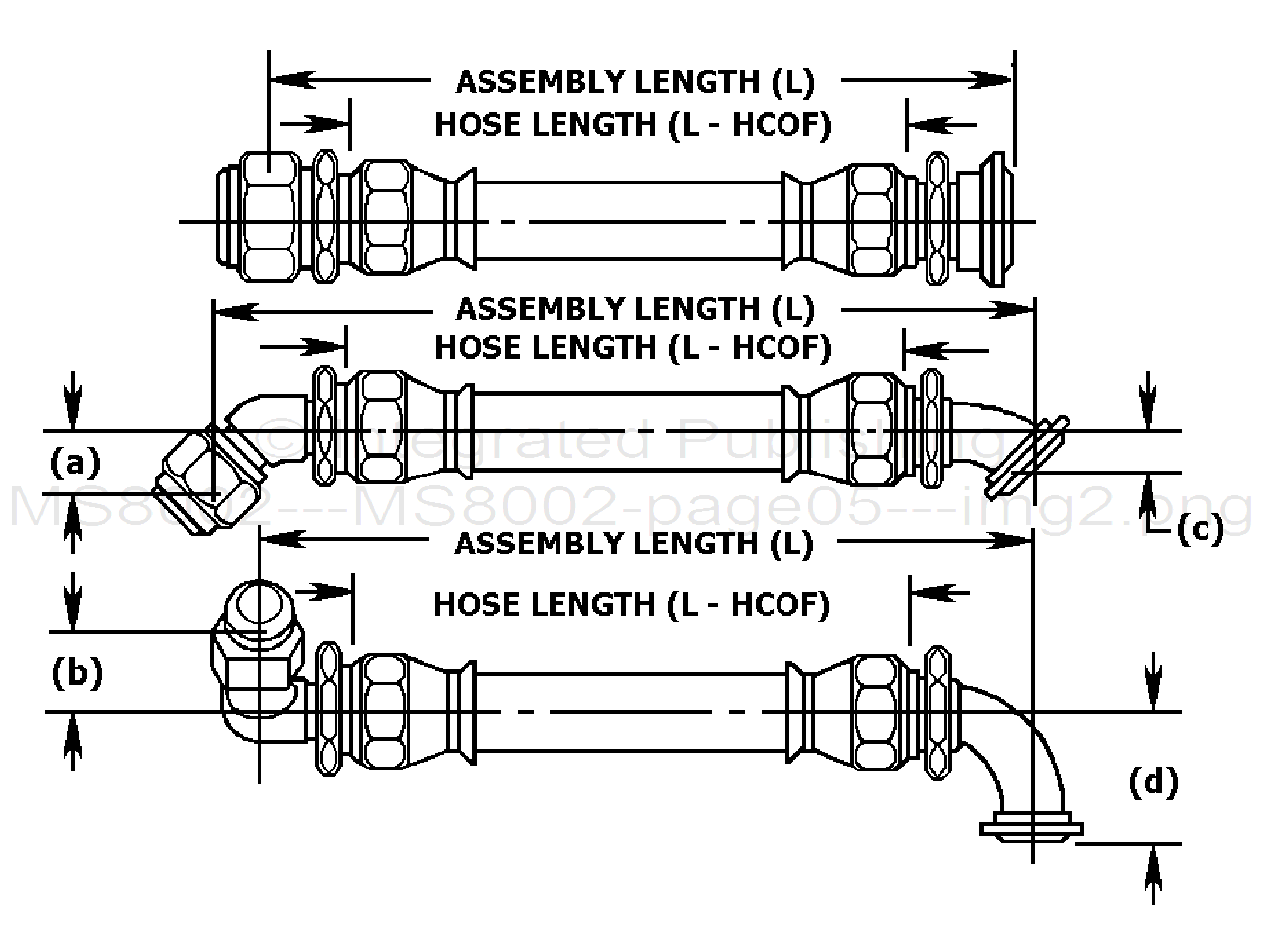

FIGURE 3. Elbow fitting drop height, dimensions (a), (b), (c) and (d).
