MS8001D
NOTE: Angular alignment shall be measured in degrees with a tolerance of ±2°.
FIGURE 2. Measurement of angular alignment between elbow fittings.
NOTES:
1. Hose assembly length "L" shall be measured, with the hose laid out horizontally and straight between the centers of the MS8000 series nipple ends, along a straight line parallel to the hose length (see MIL-DTL-25579/1).
2. See table IV for dimensions of (a) and (b). Dimensions (a) and (b) are measured to the end of a
MS8000 series style fitting. Adjustments should be made for a NAS1760 style fitting.

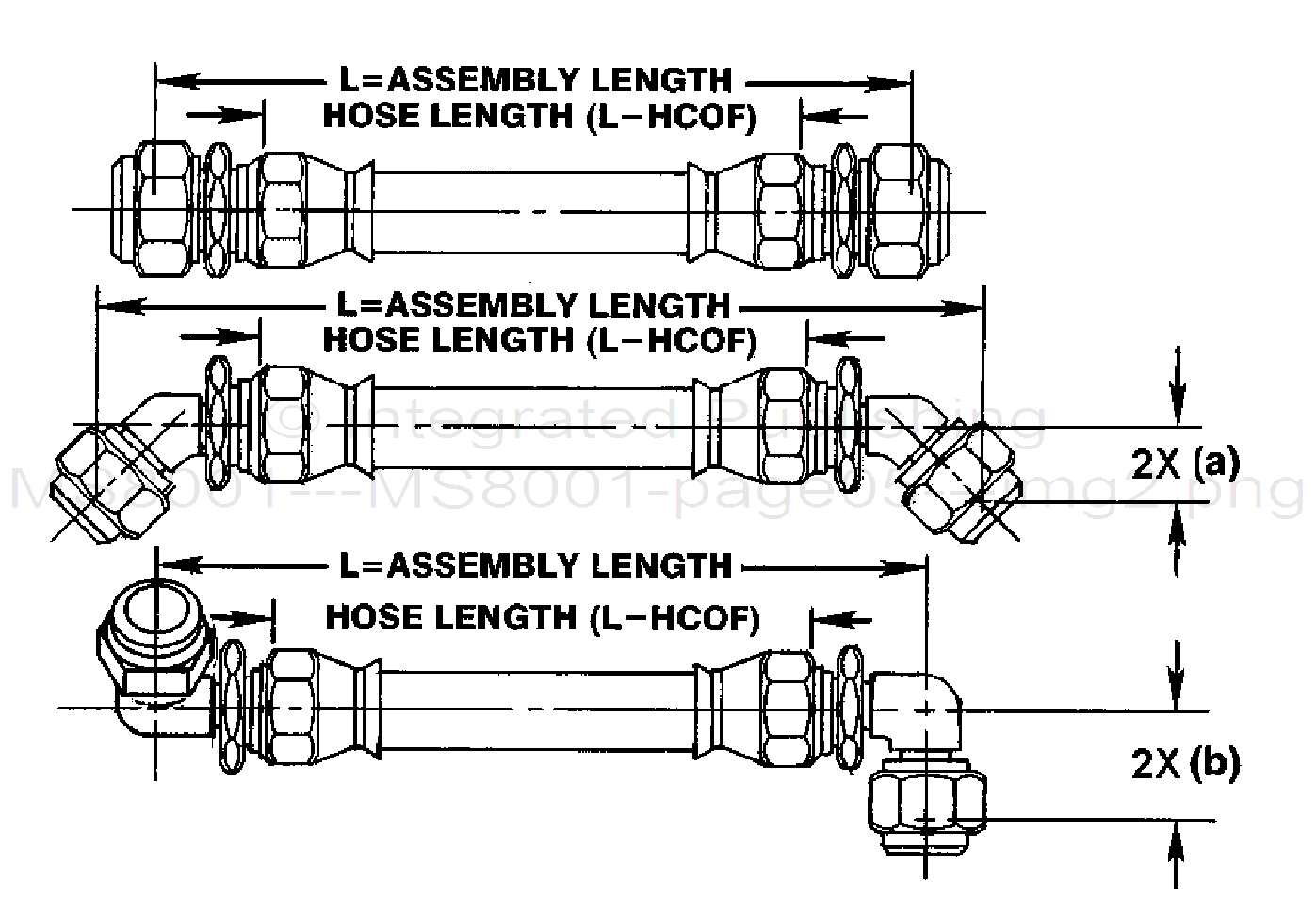

FIGURE 3. Elbow fitting drop height, dimensions (a) and (b).
