INCH-POUND
MS52104D
12 April 2006 SUPERSEDING MS52104C
1 June 1999
DETAIL SPECIFICATION SHEET
HOSE ASSEMBLY, RUBBER: FUEL AND OIL, LOW PRESSURE, FLARED TUBE
This specification is approved for use by all Departments and Agencies of the Department of Defense. The requirements for acquiring the product described herein shall consist of this specification sheet
and MIL-DTL-13444.
NOTES:
1. All undimensioned pictorial representations are for reference purposes only.
2. Dimension "L" is the defined length of the hose assembly.
3. Hose assemblies shall be specified in the following length increments:
a. Under 24 inches - 1/2 (.500) inch increments (under 60.96 cm - 12.70 mm increments). b. 24 to 36 inches - 1 inch increments (60.96 to 91.44 cm - 25.40 mm increments).
c. Over 36 inches - in not less than 2 inch increments (91.44 cm in not less than 50.80 mm increments).
4. Tolerances shall be as specified in the following:
a. ± 1/8 (.125) inch for length under 24 inches (±3.18 mm for lengths under 60.96 cm).
b. ± 1/4 (.250) inch for lengths from 24 to 36 inches (±6.35 mm for lengths from 60.96 to 91.44 cm).
c. ± 1% for lengths over 36 inches (±1% for lengths over 91.44 cm).

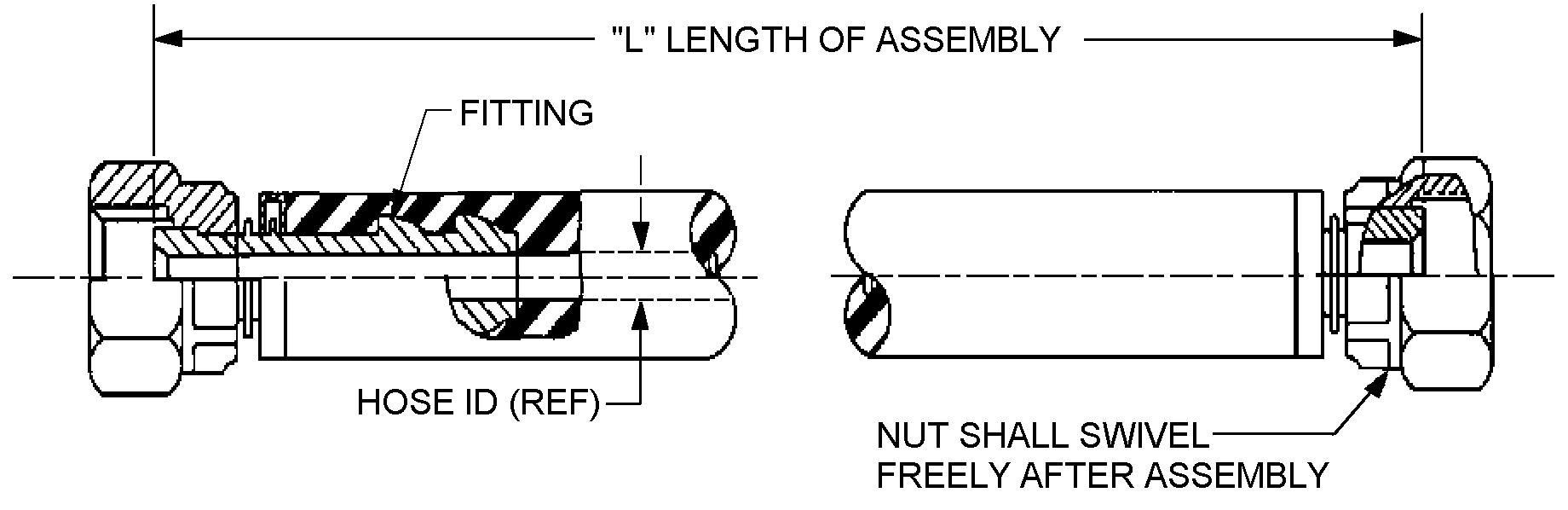

FIGURE 1. General configuration.
AMSC N/A FSC 4720
