INCH - POUND MS52103F
15 January 2010
SUPERSEDING MS52103E
1 June 1999
DETAIL SPECIFICATION SHEET
HOSE ASSEMBLY, NONMETALLIC: FUEL AND OIL, MEDIUM PRESSURE, FLARED TUBE
This specification is approved for use by all Departments and Agencies of the Department of Defense. The requirements for acquiring the product described herein shall consist of this specification sheet
and MIL-DTL-13444.
NOTES:
1. All undimensioned pictorial representations are for reference purposes only.
2. Dimension "L" is the defined length of the hose assembly.
3. Hose assemblies shall be specified in the following length increments:
a. Under 24 inches - 1/2 (.500) inch increments (under 60.96 cm - 12.70 mm increments). b. 24 to 36 inches - 1 inch increments (60.96 to 91.44 cm - 25.40 mm increments).
c. Over 36 inches - in not less than 2 inch increments (91.44 cm in not less than mm increments).
4. Tolerances shall be as specified in the following:
a. ± 1/8 (.125) inch for length under 18 inches (±3.18 mm for lengths under 457 mm).
b. ± 1/4 (.250) inch for lengths from 18 to 36 inches (±6.35 mm for lengths from 457 to 914 mm).
c. ±1/2 (.500) inch for lengths from 36 to 50 inches ((±12.70 mm for lengths from 914 to 1270 mm).
d. ± 1% for lengths over 50 inches (±1% for lengths over 1270 mm).

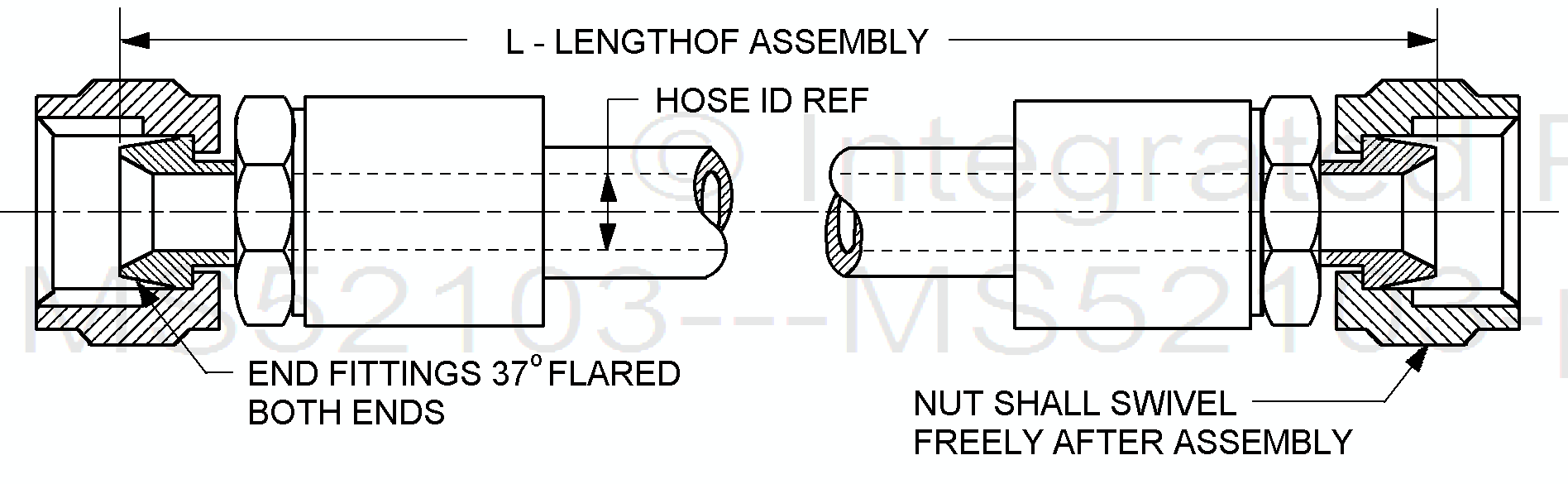

FIGURE 1. General configuration.
