INCH-POUND
MS28759D
19 April 2007 SUPERSEDING MS28759C
6 April 2001
DETAIL SPECIFICATION SHEET
HOSE ASSEMBLY, RUBBER, HYDRAULIC 3,000 PSI, STRAIGHT TO STRAIGHT, FLARED TUBE FIELD ATTACHABLE
This specification is approved for use by all Departments and Agencies of the Department of
Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet and MIL-DTL-8790.
Dash size number (see note 4) |
Tubing OD ref. inch (mm) |
Hose ID ref. inch (mm) |
End fittings PIN (see note 5) |
-4 |
.25 (6.35) |
.22 (5.59) |
MS28760-4 |
-5 |
.31 (7.87) |
.28 (7.11) |
MS28760-5 |
-6 |
.38 (9.65) |
.34 (8.64) |
MS28760-6 |
-8 |
.50 (12.70) |
.44 (11.18) |
MS28760-8 |
-10 |
.63 (16.00) |
.56 (14.22) |
MS28760-10 |
-12 |
.75 (19.05) |
.69 (17.53) |
MS28760-12 |
-16 |
1.00 (25.40) |
.88 (22.35) |
MS28760-16 |

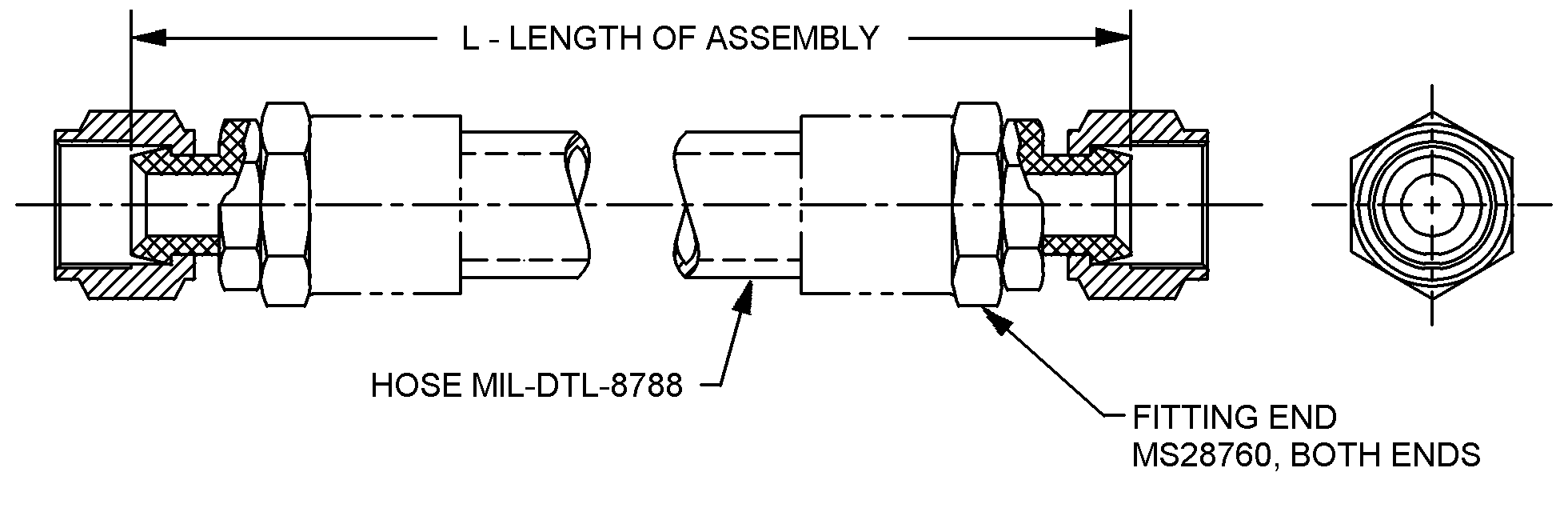

FIGURE 1. Hose assembly, flared tube dimensions and configuration.
AMSC N/A FSC 4720
