MIL-DTL-83796/7D
NOTE: In the Part or Identifying Number (PIN) add the letter "L" after style for lockwire hole,
example: EL, applicable to fitting 1, see table 1.

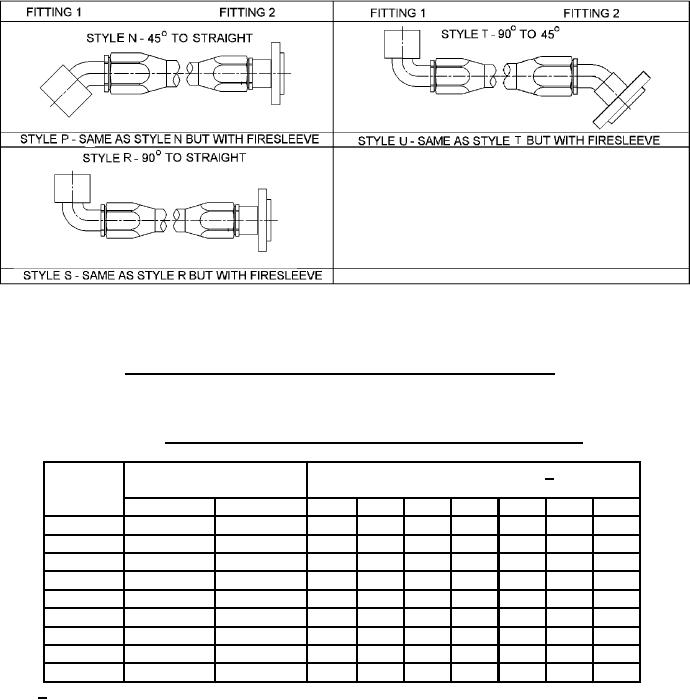

FIGURE 1. Hose assembly styles, field attachable fittings, flareless-to-flange - Continued.
Hose-cut off factor (HCOF). HCOF is calculated as shown in table I.
TABLE I. Hose assembly, field attachable fittings, HCOF, styles A thru U.
Fitting ends
MIL-DTL-83797 HCOF 1/
MIL-DTL-83798
inches verses hose dash size number
Style
Fitting 1
Fitting 2
-08
-10
-12
-16
-20
-24
-32
A and B
M83798/4
M83798/7
2.34 2.42 2.62 3.06 3.57 3.67 4.20
C and D
M83798/4
M83798/8
2.41 2.59 2.94 3.47 3.91 4.36 5.03
E and F
M83798/4
M83798/9
2.34 2.55 2.96 3.53 4.03 4.54 5.32
G and H
M83798/5
M83798/8
2.69 2.94 3.47 4.09 4.61 5.11 5.82
J and K
M83798/5
M83798/9
2.62 2.90 3.49 4.15 4.73 5.29 6.11
L and M
M83798/6
M83798/9
2.30 2.54 3.18 3.86 4.46 4.94 5.72
N and P
M83798/5
M83798/7
2.62 2.77 3.15 3.48 4.17 4.42 4.69
R and S
M83798/6
M83798/7
2.30 2.41 2.84 3.39 3.90 4.07 4.60
T and U
M83798/6
M83798/8
2.37 2.58 3.16 3.80 4.34 4.76 6.43
1/ Example of HCOF: for a -08, ½ hose OD, 20-1/2 inch assembly length, style A, the bulk
hose length = 20.50 - the HCOF = 20.50 -2.34 = 18.16. Bulk hose length required is
18.16 inches.
Hose assembly length. The hose assembly length is calculated as shown on figure 2.
Hose assembly elbow fitting drop height. Elbow fitting drop height B and C is calculated as shown on
figure 2. Drop height B and C can be found in the applicable MIL-DTL-83798 slash sheet as specified
in table I herein.
