INCH-POUND
MIL-DTL-52471/9B
4 December 2008
SUPERSEDING
MIL-DTL-52471/9A
27 April 1998
DETAIL SPECIFICATION SHEET
HOSE, RUBBER: HYDRAULIC PRESSURE-TYPE; TYPE 100R12
FOUR-SPIRAL-WRAP REINFORCEMENT HOSE
This specification is approved for use by all Departments and
Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet and
MIL-DTL-52471.

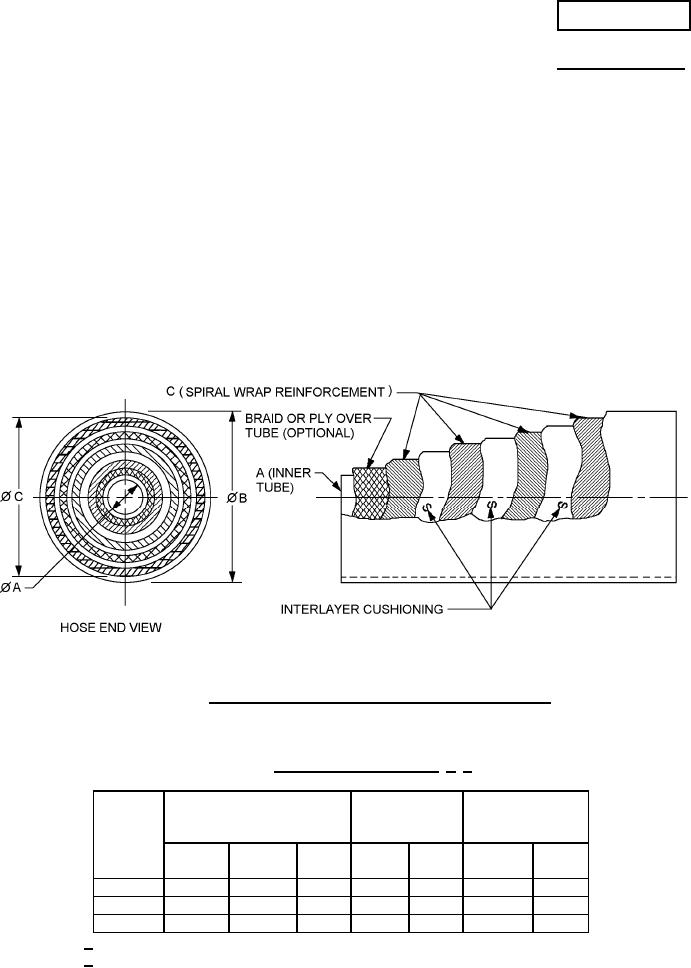

FIGURE 1. Hose: type 100R12, four-spiral-wrap reinforcement.
Hose operating pressure. Hose operating pressure shall be as specified in table I.
TABLE I. Hose operating pressure. 1/ 2/
Maximum
Minimum
Hose ID
operating
Hose ID
burst
pressure
pressure
dash
number
inch
inch
mm
psi
Mpa
psi
MPa
fraction decimal
-8
1/2
.500
12.70 4000
28
16,000
110
-12
3/4
.750
19.05 4000
28
16,000
110
-16
1
1.00
25.40 4000
28
16,000
110
1/ Dimensions are in inches.
2/ Metric equivalents are given for information only.
AMSC N/A
FSC 4720
