INCH-POUND
MIL-DTL-52471/5C
4 December 2008
SUPERSEDING
MIL-DTL-52471/5B
27 April 1998
DETAIL SPECIFICATION SHEET
HOSE, RUBBER, HYDRAULIC PRESSURE-TYPE, TYPE 100R2
DOUBLE-WIRE-BRAIDED REINFORCEMENT HOSE
This specification is approved for use by all Departments and
Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet and
MIL-DTL-52471.

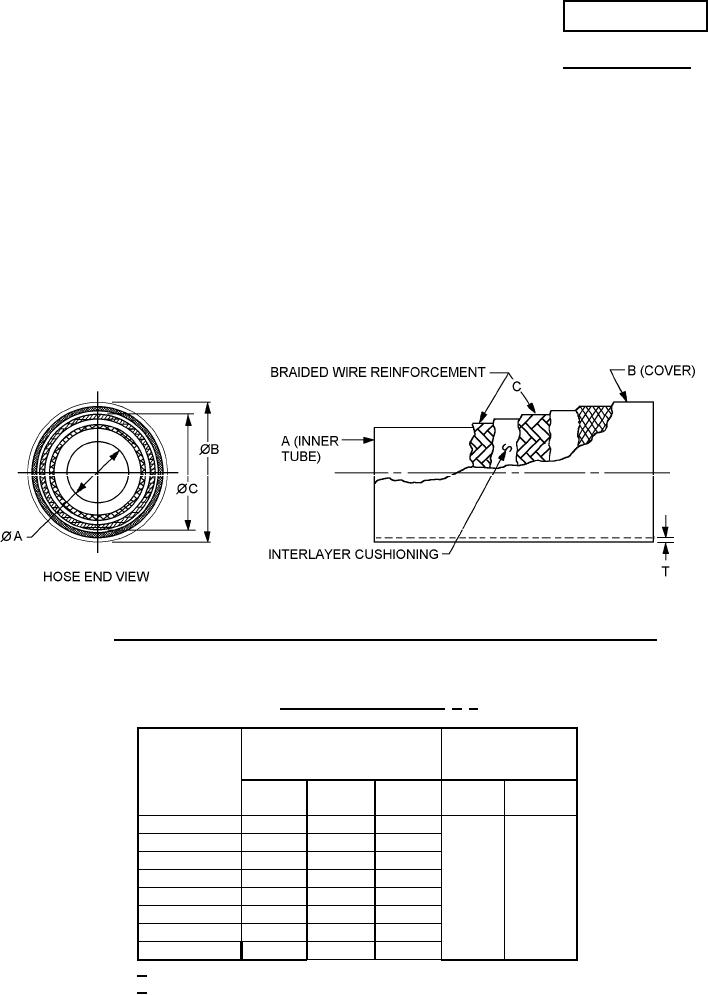

FIGURE 1. Hose construction and dimension, type 100R2, double wire braided reinforcement.
Hose operating pressure. Hose operating pressure shall be as specified in table I.
TABLE I. Hose operating pressure. 1/ 2/
Operating
Hose ID
pressure
Hose ID
max
dash number
Inch
Inch
mm
psi
MPa
fraction decimal
-4
1/4
.250
6.35
5000
34.5
-6
3/8
.375
9.53
4000
27.6
-8
1/2
.500 12.70
3500
24.1
-12
3/4
.750 19.05
2250
15.5
-16
1
1.000 25.40
2000
13.8
-20
1-1/4
1.250 31.75
1625
11.2
-24
1-1/2
1.500 38.10
1250
8.6
-32
2
2.000 50.80
1125
7.8
1/ Dimensions are in inches.
2/ Metric equivalents are given for information only.
AMSC N/A
FSC 4720
