INCH-POUND
MIL-DTL-52471/3C
4 December 2008
SUPERSEDING
MIL-DTL-52471/3B
27 April 1998
DETAIL SPECIFICATION SHEET
HOSE ASSEMBLIES, RUBBER, HYDRAULIC PRESSURE-TYPE,
TYPE 100RE, FOUR-WIRE BRAIDED REINFORCEMENT OR
MULTIPLE WIRE BRAIDED STEEL WIRE REINFORCED HOSE
This specification is approved for use by all Departments and
Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet
and MIL-DTL-52471.
ENGINEERING DATA:
MIL-DTL-52471/6 hose has been canceled. For users of 100R10 the hose and fittings are no longer
being manufactured reference table IV for suggested hose replacements.
This hose assembly document is being retained so replacement parts can be ordered from this slash
sheet. The intent is to allow users the ability to use PIN's in this slash sheet to assemble hose
assemblies. Manufacturers will use the appropriate substitute hose and fittings to make a hose
assembly to meet the mating requirements of the fittings listed in tables II through VI, meet the
performance requirements of SAE-J517, and mark it in accordance with MIL-DTL-52471/3.

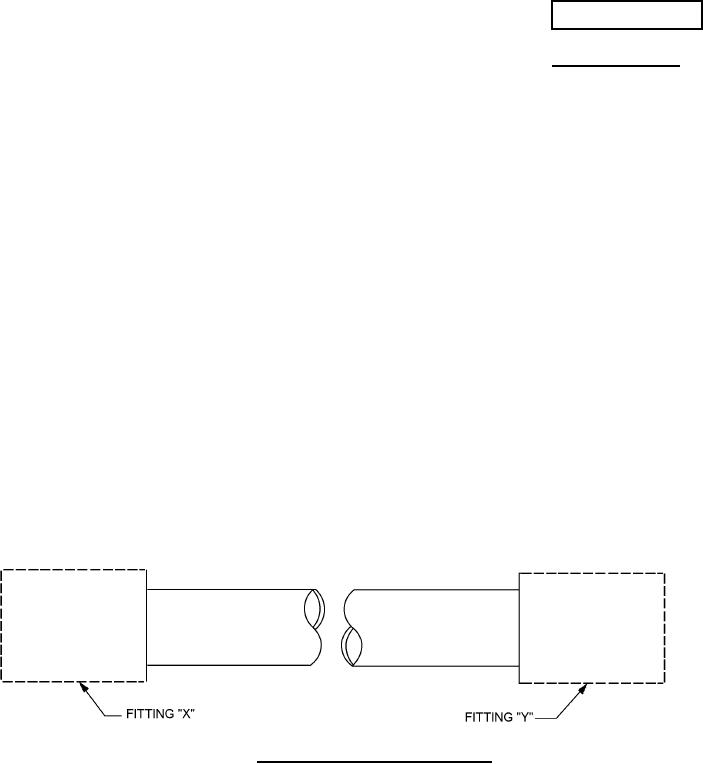

FIGURE 1. Hose assembly, fitting identification.
Operating pressure. Hose assembly shall operate at pressures shown in table I.
AMSC N/A
FSC 4720
