MIL-DTL-29210 Hose Assembly, Rubber, Metal Lined, Wire Reinforced, 250 Psig, Saturated Steam ServiceThis specification covers metal lined, wire reinforced, rubber-hose assemblies for conveyance of saturated steam. The working pressure of this hose is 250 pound-force per square inch gauge \(psig\) \(1.72 MPa gauge\) at a temperature of 406 Deg. F \(208 Deg. C\).

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15 - 16 - 17 - 18 - 19 - 20 - 21


.
MIL-DTL-29210E

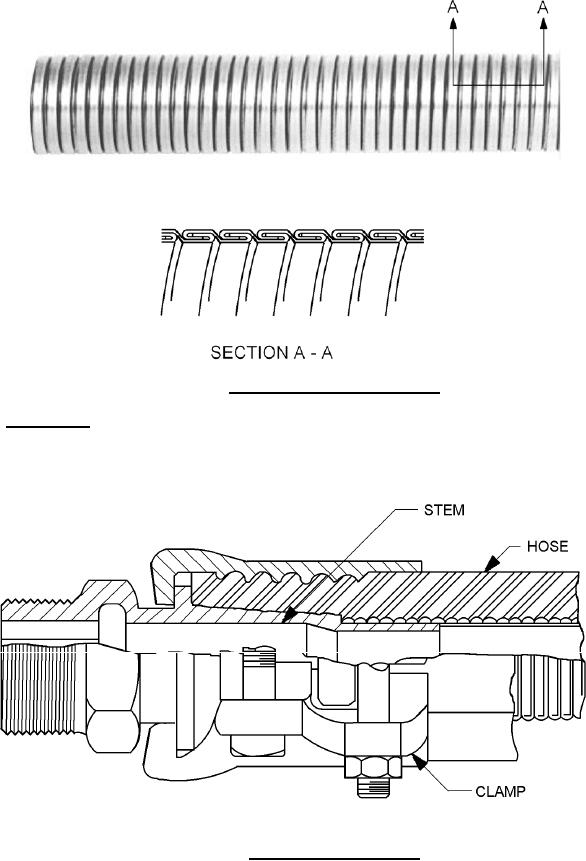

FIGURE 2. Interlocked flexible metal tubing.
3.4.3 Hose fittings. Hose fittings shall be of the long shank, interlocking clamp type, having fingers or
lugs on each half of the clamp to grip the collar on the stem, see figures 3 and 4. The fittings shall
prevent the stem shank from being pulled forward in relation to the clamp. Each clamp half shall interlock
with the other half.
FIGURE 3. Male end fitting assembly.
6
