A-A-59567/6
Clamp fastening. Clamps shall have holes for fastening with 2 bolts for sizes up to and including .750
inch hose assemblies and 4 bolts for sizes 1.00 inch and greater hose assemblies, see figure 2.

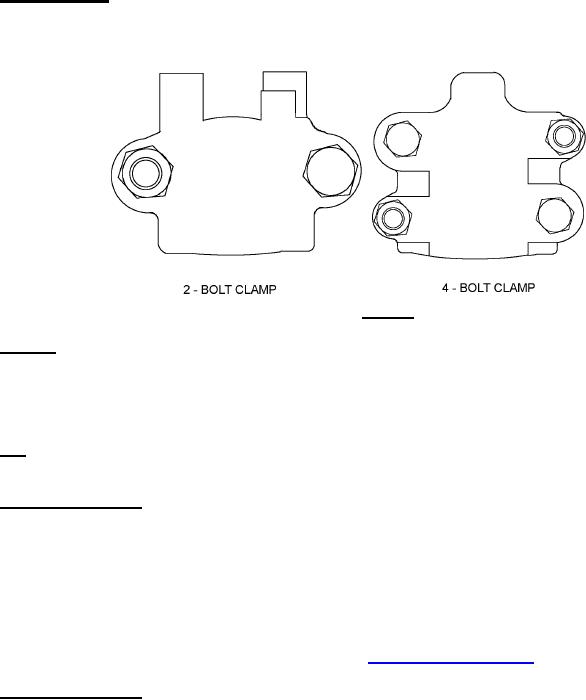

FIGURE 2. Clamps .
Gaskets. Gaskets shall be in accordance with A-A-59326, except the material shall be suitable for the
hose class for which it is intended, non-potable water or potable water. Hose assemblies shall come with
a gasket.
NOTES.
PIN. The PIN should be used for Government purposes to buy commercial products to this CID
specification sheet. See classification information for PIN format example.
Source of documents.
COMMERCIAL ITEM DESCRIPTIONS
A-A-59326
-
Coupling Halves, Quick-Disconnect, Cam-Locking Type, General
Specification For
A-A-59326/2
-
Coupling Half, Male by Hose Shank, Type II
A-A-59326/6
-
Coupling Half, Female by Hose Shank, Type VI
(Copies of these documents are available online at https://quicksearch.dla.mil.)
Commercial products. As part of the market analysis and research effort, this CID specification sheet was
coordinated with the following manufacturers of commercial products. At the time of CID specification
sheet preparation and coordination, these manufacturers were known to have commercial products that
would meet the requirements of this CID specification sheet. (NOTE: This information should not be
considered as a list of approved manufacturers or be used to restrict procurement to only the
manufacturers shown.)
4
