A-A-59567/6
Construction. Unless otherwise specified, type III coupling parts shall be in accordance with
A-A-59326/6 (coupling half, female) and A-A-59326/2 (coupling half, male). See table II for coupling style
designators
TABLE II. Coupling style designators.
Style
Description
designator
-1N
No positive locking mechanism to lock cam arms in the closed position.
Incorporates a positive locking mechanism to lock the cam arms in the closed position
-2P
when the coupling halves are assembled.
Materials. The coupling shall be cast or machined from aluminum, copper alloy (brass), steel,
polypropylene, heat stabilized 6/6 nylon, or corrosion resistant steel, (see table II and figure 1)
Couplings. Couplings when attached to hose shall be able to withstand an internal hydrostatic pressure
of 100 psi, for at least one minute without showing any signs of leakage.
Materials. Couplings shall be cast, machined, pressed or extruded from one of the materials in table III.
TABLE III. Material types and designator.
Material
designator
Material
code
A
Aluminum anodized
B
Copper alloy (brass or bronze)
BA
Aluminum bronze
C
Steel zinc plated
P
Polypropylene
N
Heat stabilized 6/6 nylon
S
Corrosion resistant steel

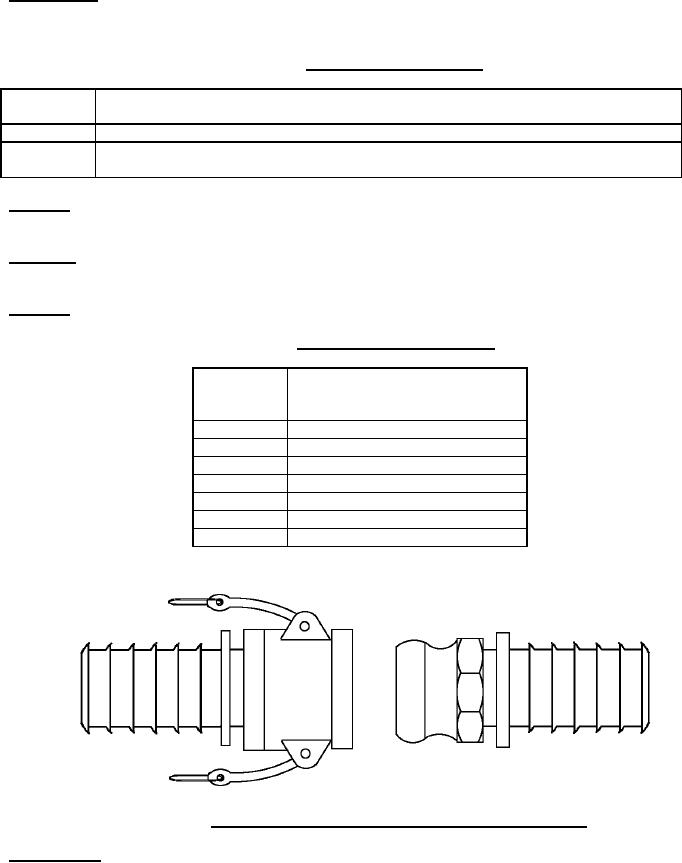

FIGURE 1. Shank type coupler and adapter with interlocking clamps.
Clamp design. The clamp shall have grooved or waffled interior surfaces equipped for gripping and
compressing the hose surface against the nipple.
