A-A-59567/1
Couplings type I styles 1and 3. Type I styles 1 and 3 couplings shall be in accordance with A-A-59614/1
(short shank) or A-A59614/3 (long shank).
Couplings type I styles 2 and 4. Type I styles 2 and 4 couplings shall be in accordance with A-A-59614/2
(short shank) or A-A59614/4 (long shank).
Female section. Female section shall have a swivel nut; with gasket recess in swivel (recess may be
omitted provided the standard commercial gasket does not fall out when the two sections are
disconnected).

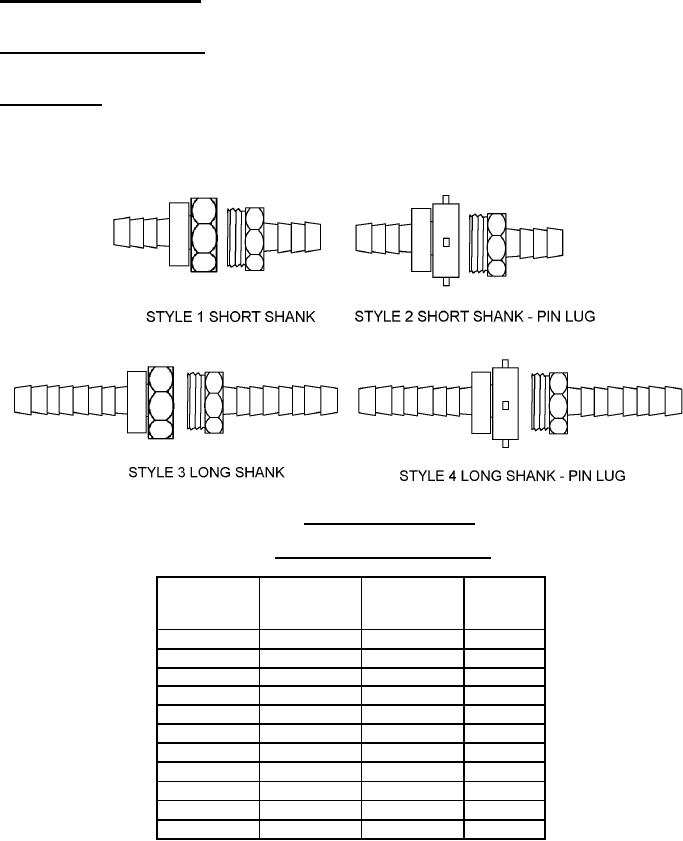

FIGURE 1. Type I ribbed shank class.
TABLE I. Size codes for hose assemblies.
Hose
Class A
Class AA
PIN
assembly
couplings
coupling
size code
size
size
size
8
.500
.50
10
.625
.625
12
.750
.75
.75
16
1.00
1.00
20
1.25
1.25
24
1.50
1.50
32
2.00
2.00
34
2.50
2.50
48
3.00
3.00
56
3.50
3.50
64
4.00
4.00
3
