MIL-DTL-83796/5D

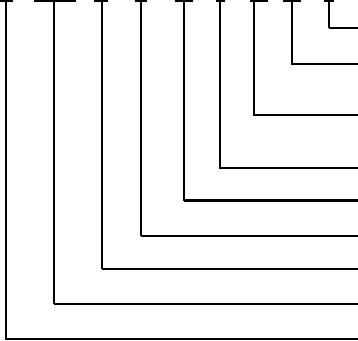

PIN example:
M
83796
/5
H
08
2
FL
06
T
Material/finish code (see table III)
Angle between elbows to be specified in 5°
increments, 30° / 5 = 06 (see figure 3)
Style and lockwire holes "L" if required (see
figure 1)
Length in eighths of an inch (0 through 7)
Length in inches (see figure 2)
Size code (see table II)
Specification sheet number
Specification number
M prefix
M83796/5H082F06T indicates - Hose assembly for 1/2 hose OD, 8 1/4 inches in length, style F, 30°
between elbows, titanium alloy.
Changes from previous issue. Marginal notations are not used in this revision to identify changes
with respect to the previous issue due to the extent of the changes.
Referenced documents. In addition to MIL-DTL-83796, this document references the following:
MIL-A-8625
SAE-AMS2486
MIL-DTL-83797
SAE-AMS2488
MIL-DTL-83798
SAE-AS4395
MS20756
SAE-J517
MS33786
8
