MS8000D

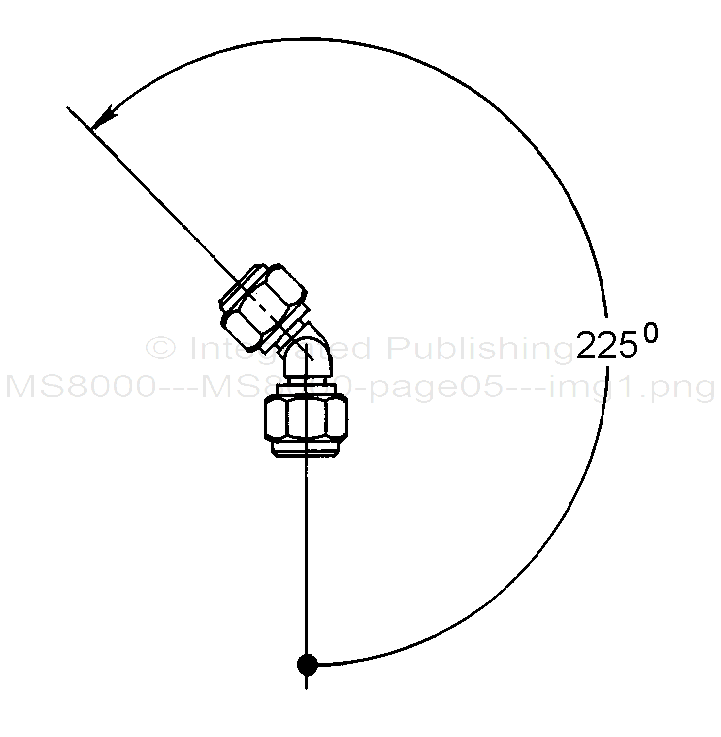

NOTE: Angular alignment shall be measured in degrees with a tolerance of ±2°.
FIGURE 2. Measurement of angular alignment between elbow fittings.

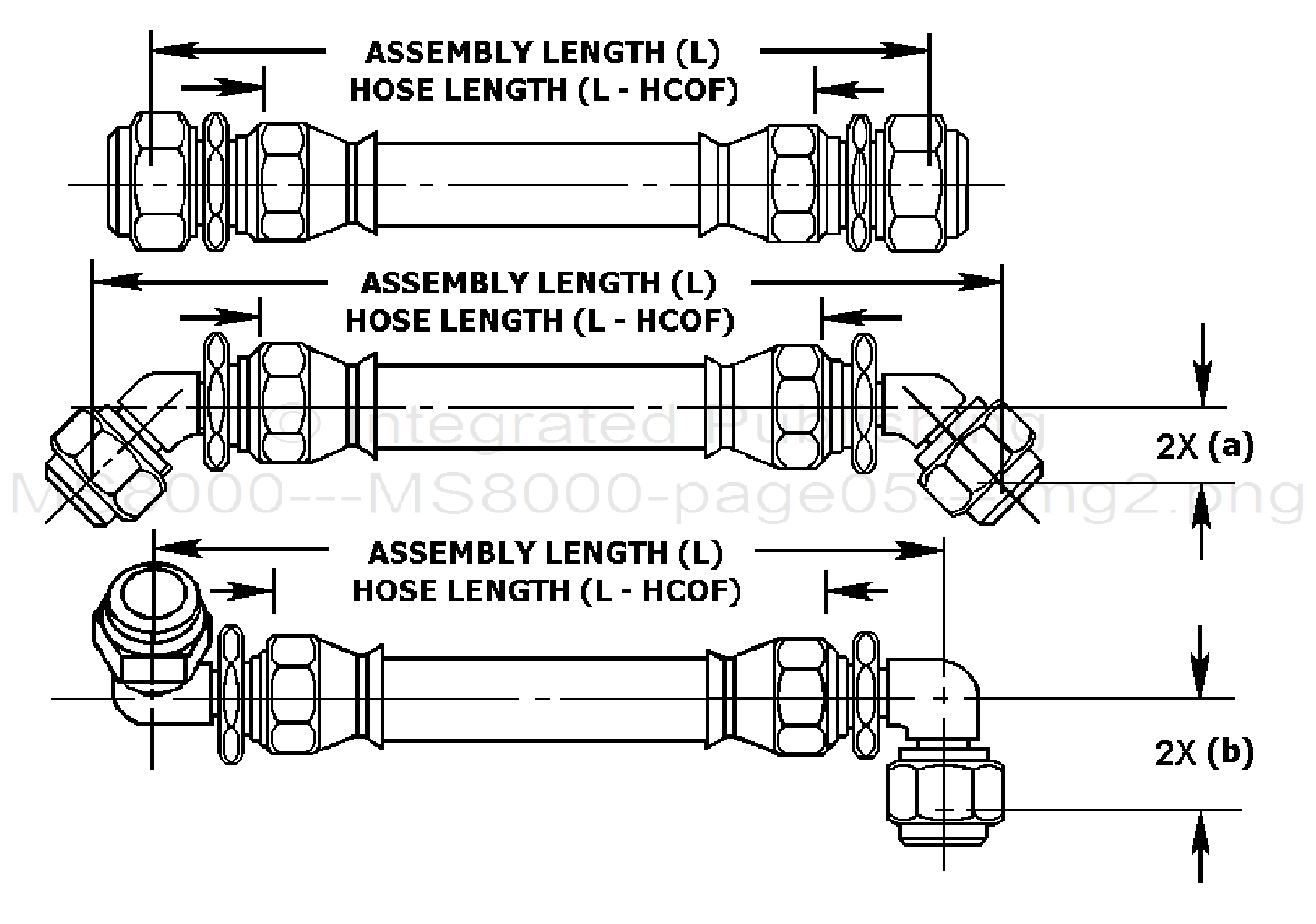

NOTES:
1. Hose assembly length "L" shall be measured, with the hose laid out horizontally and straight between the centers of the nipple ends, along a straight line parallel to the hose length.
2. See table IV for dimensions of (a) and (b).
FIGURE 3. Elbow fitting drop height, dimensions (a) and (b).
5
