INCH-POUND MS28924C
19 April 2007
SUPERSEDING MS28924B
6 April 2001
DETAIL SPECIFICATION SHEET
HOSE ASSEMBLY, RUBBER, HYDRAULIC 3,000 PSI, ELBOW 90- TO ELBOW 90-, FLARED TUBE
This specification is approved for use by all Departments and Agencies of the Department of
Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet and MIL-DTL-8790.
Dash size number (see note 4) |
Tubing OD ref. inch (mm) |
Hose ID ref. inch (mm) |
End fittings PIN (see note 5) |
-4 |
.25 (6.35) |
.22 (5.59) |
MS28781-4 |
-5 |
.31 (7.87) |
.28 (7.11) |
MS28781-5 |
-6 |
.38 (9.65) |
.34 (8.64) |
MS28781-6 |
8 |
.50 (12.70) |
.44 (11.18) |
MS28781-8 |
-10 |
.63 (16.00) |
.56 (14.22) |
MS28781-10 |
-12 |
.75 (19.05) |
.69 (17.53) |
MS28781-12 |
-16 |
1.00 (25.40) |
.88 (22.35) |
MS28781-16 |

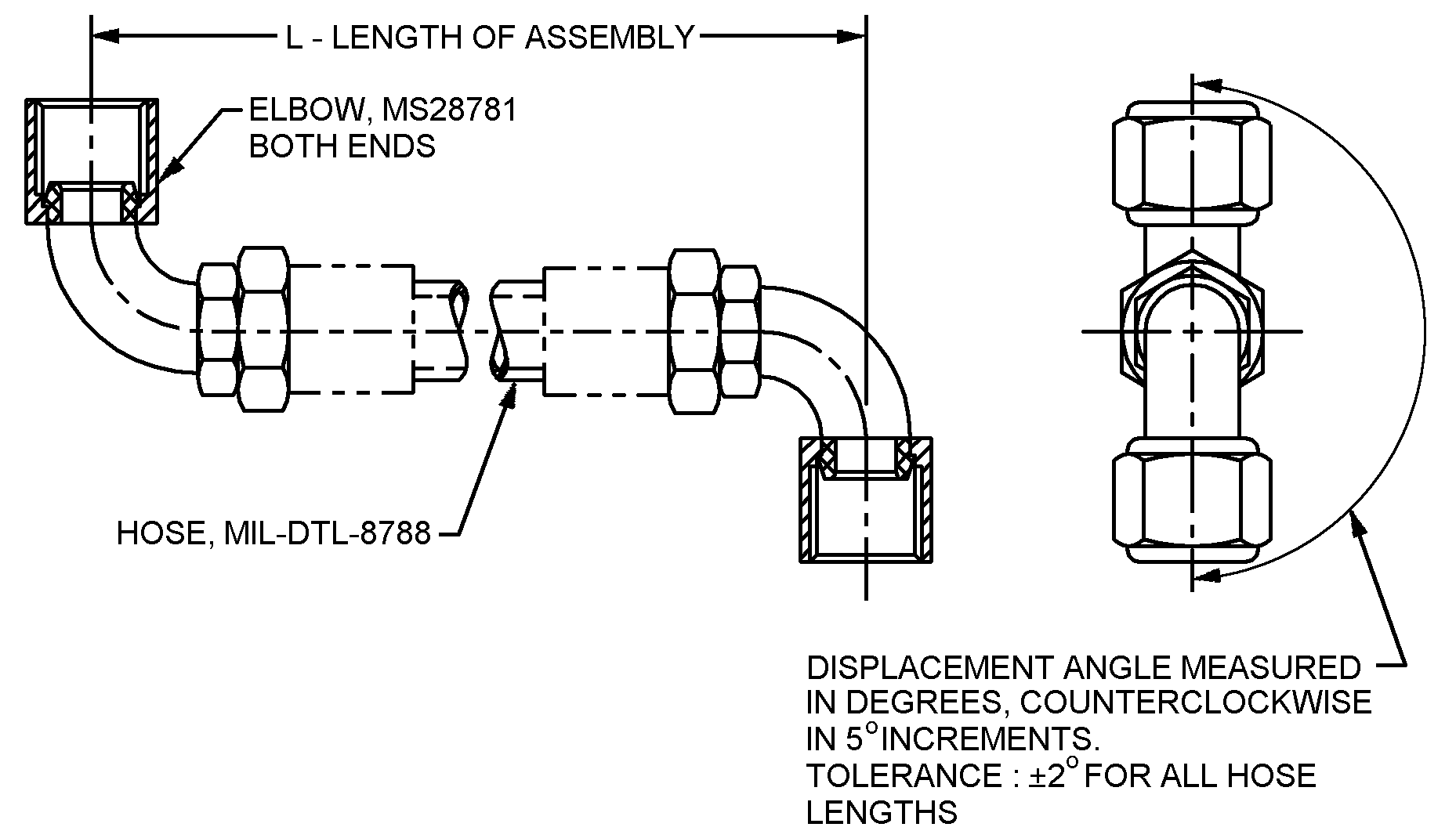

FIGURE 1. Hose assembly, flared tube dimensions and configuration.
