INCH-POUND MS28921C
19 April 2007
SUPERSEDING MS28921B
6 April 2001
DETAIL SPECIFICATION SHEET
HOSE ASSEMBLY, RUBBER, HYDRAULIC 3,000 PSI, STRAIGHT TO ELBOW 90°, FLARED TUBE
This specification is approved for use by all Departments and
Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet and
MIL-DTL-8790.
Dash size number |
Tubing OD ref. inch (mm) |
Hose ID ref. inch (mm) |
End fittings PIN (see note 5) |
-4 |
.25 (6.35) |
.22 (5.59) |
MS28760-4 and MS28781-4 |
-5 |
.31 (7.87) |
.28 (7.11) |
MS28760-5 and MS28781-5 |
-6 |
.38 (9.65) |
.34 (8.64) |
MS28760-6 and MS28781-6 |
-8 |
.50 (12.70) |
.44 (11.18) |
MS28760-8 and MS28781-8 |
-10 |
.63 (16.00) |
.56 (14.22) |
MS28760-10 and MS28781-10 |
-12 |
.75 (19.05) |
.69 (17.53) |
MS28760-12 and MS28781-12 |
-16 |
1.00 (25.40) |
.88 (22.35) |
MS28760-16 and MS28781-16 |

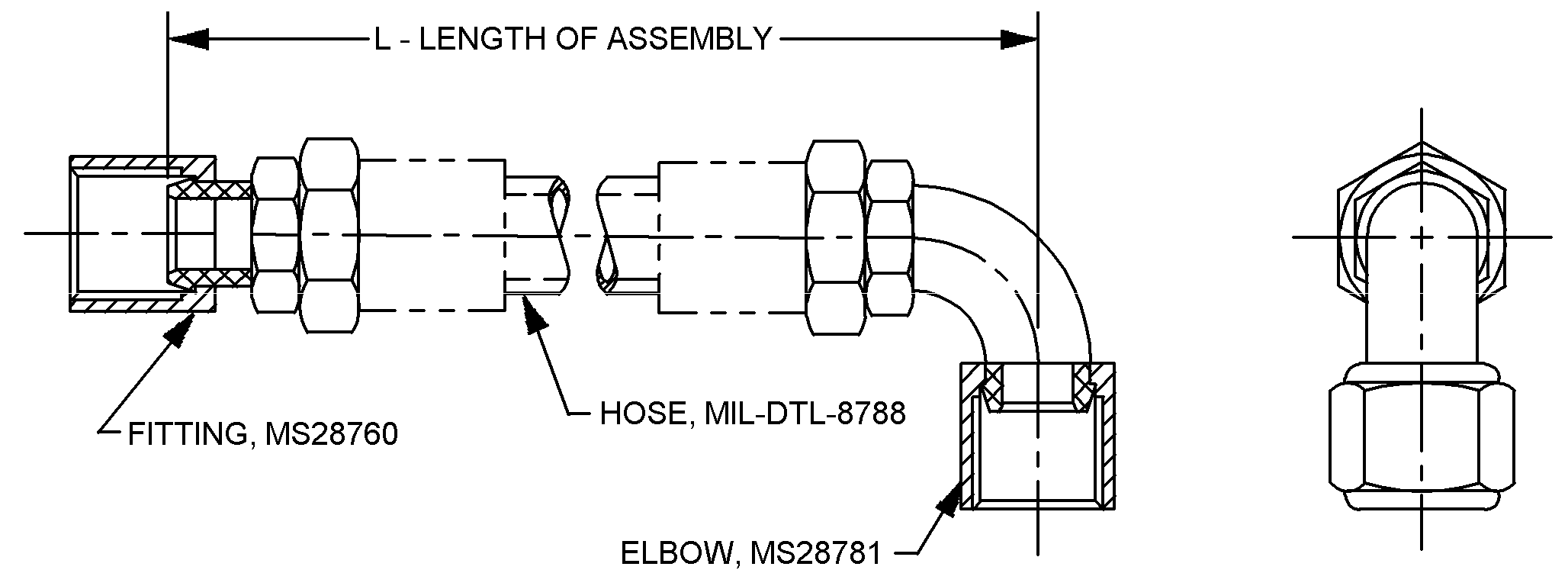

FIGURE 1. Hose assembly, flared tube dimensions and configuration.
