INCH-POUND MS28920C
19 April 2007
SUPERSEDING MS28920B
6 April 2001
DETAIL SPECIFICATION SHEET
HOSE ASSEMBLY, RUBBER, HYDRAULIC (3000 PSI), STRAIGHT TO ELBOW 45°, FLARED TUBE FIELD ATTACHABLE
This specification is approved for use by all Departments and Agencies of the Department of
Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet and MIL-DTL-8790.
Dash size number (see note 4) |
Tubing OD ref. inches (mm) |
Hose ID ref. inches (mm) |
End fitting PIN (see note 5) |
4 |
.25 (6.35) |
.22 (5.59) |
MS28760-4 and MS28780-4 |
5 |
.31 (7.87) |
.28 (7.11) |
MS28760-5 and MS28780-5 |
6 |
.38 (9.65) |
.34 (8.64) |
MS28760-6 and MS28780-6 |
8 |
.50 (12.70) |
.44 (11.18) |
MS28760-8 and MS28780-8 |
10 |
.63 (16.00) |
.56 (14.22) |
MS28760-10 and MS28780-10 |
12 |
.75 (19.05) |
.69 (17.53) |
MS28760-12 and MS28780-12 |
16 |
1.00 (25.40) |
.88 (22.35) |
MS28760-16 and MS28780-16 |

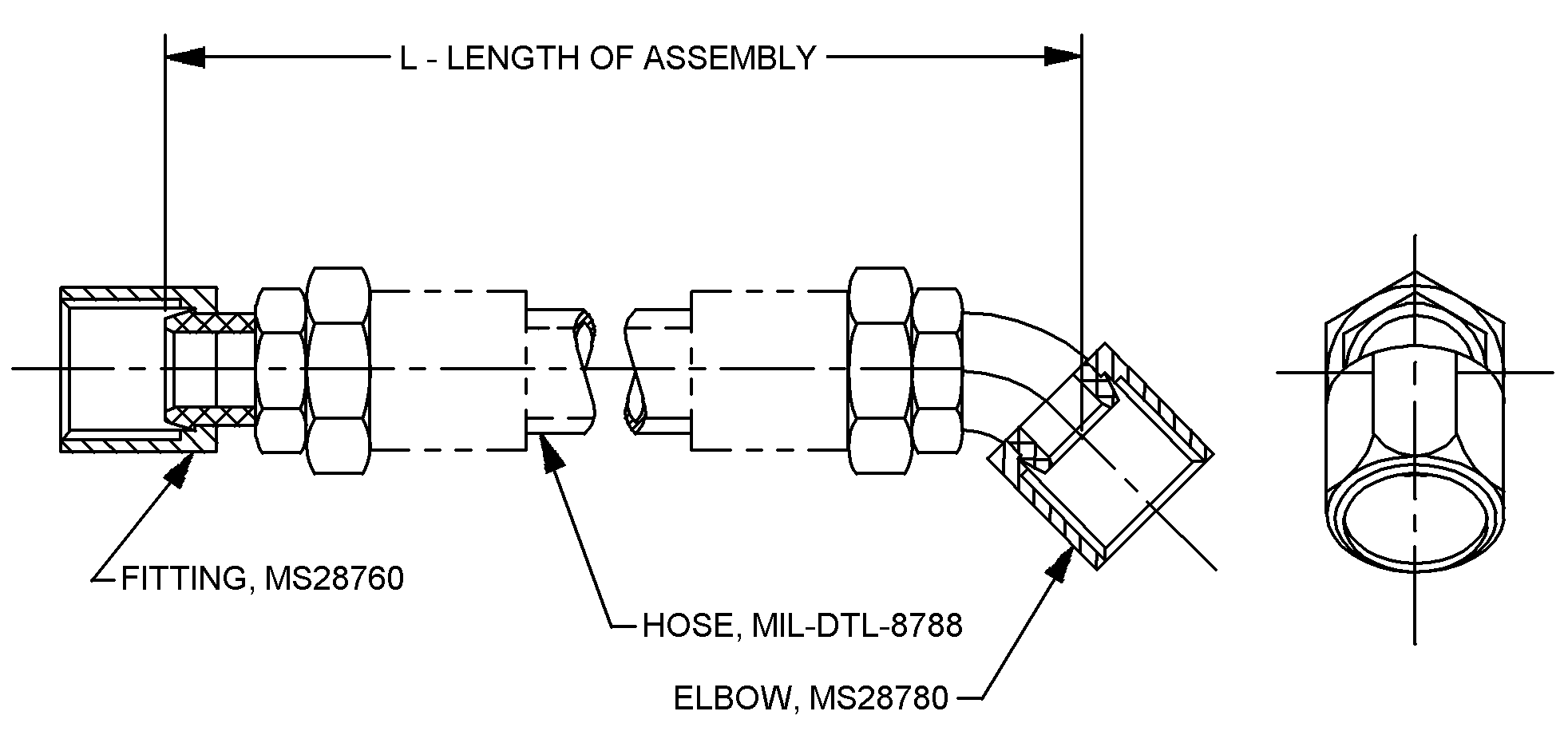

FIGURE 1. Hose assembly, flared tube dimensions and configuration.
AMSC N/A FSC 4720
