INCH-POUND
MS28762D
19 April 2007 SUPERSEDING MS28762C
6 April 2001
DETAIL SPECIFICATION SHEET
HOSE ASSEMBLY, RUBBER, HYDRAULIC 3000 PSI, STRAIGHT TO STRAIGHT, FLARELESS TUBE FIELD ATTACHABLE
This specification is approved for use by all Departments and Agencies of the Department of
Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet and MIL-DTL-8790.
Dash size number (see note 4) |
Tubing OD ref. inch (mm) |
Hose ID ref. inch (mm) |
End fitting PIN (see note 5) |
-4 |
.25 (6.35) |
.22 (5.59) |
MS28761-4 |
-5 |
.31 (7.87) |
.28 (7.11) |
MS28761-5 |
-6 |
.38 (9.65) |
.34 (8.64) |
MS28761-6 |
-8 |
.50 (12.70) |
.44 (11.18) |
MS28761-8 |
-10 |
.63 (16.00) |
.56 (14.22) |
MS28761-10 |
-12 |
.75 (19.05) |
.69 (17.53) |
MS28761-12 |
-16 |
1.00 (25.40) |
.88 (22.35) |
MS28761-16 |

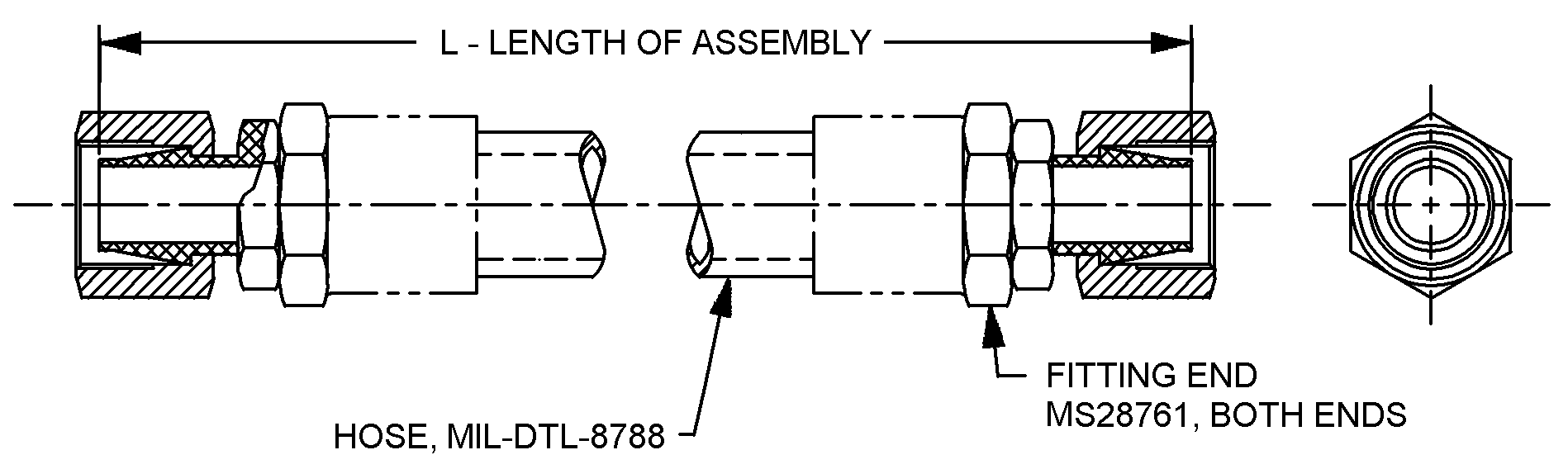

FIGURE 1. Hose assembly, flareless tube configuration and dimensions.
AMSC N/A FSC 4720
