INCH-POUND
MS28741K
15 January 2010 SUPERSEDING MS28741J
22 September 2000
DETAIL SPECIFICATION SHEET
HOSE ASSEMBLY, DETACHABLE END FITTING, MEDIUM PRESSURE
This specification is approved for use by all Departments and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet and MIL-DTL-8795.
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for information only.
3. Hose assembly lengths (L) shall be as specified with the following tolerances:
a. Under 18 inches (0.46 m) long ± .125 inch (3.18 mm).
b. Over 18 to 36 inches (0.46 to 0.91 m) long ± .250 inch (6.35 mm). c. Over 36 to 50 inches long (0.91 to 1.27 m) ± .500 inch (12.70 mm). d. Over 50 inches long (tolerance ± 1.0%).

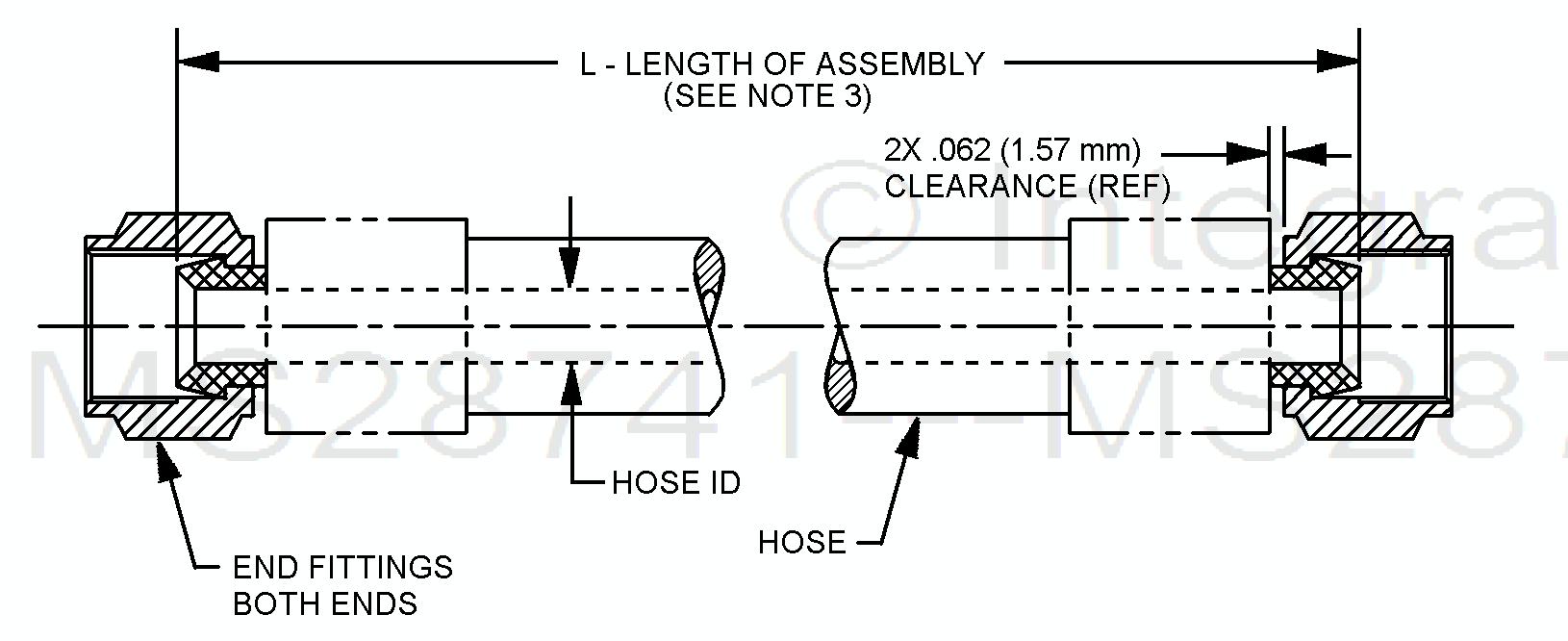

FIGURE 1. Hose assembly dimensions and configuration.
AMSC N/A FSC 4720
