MIL-DTL-83796/8D
NOTE: In the Part or Identifying Number (PIN) add the letter "L" after style for lockwire hole,
example: EL, applicable to fitting 1, see table 1.

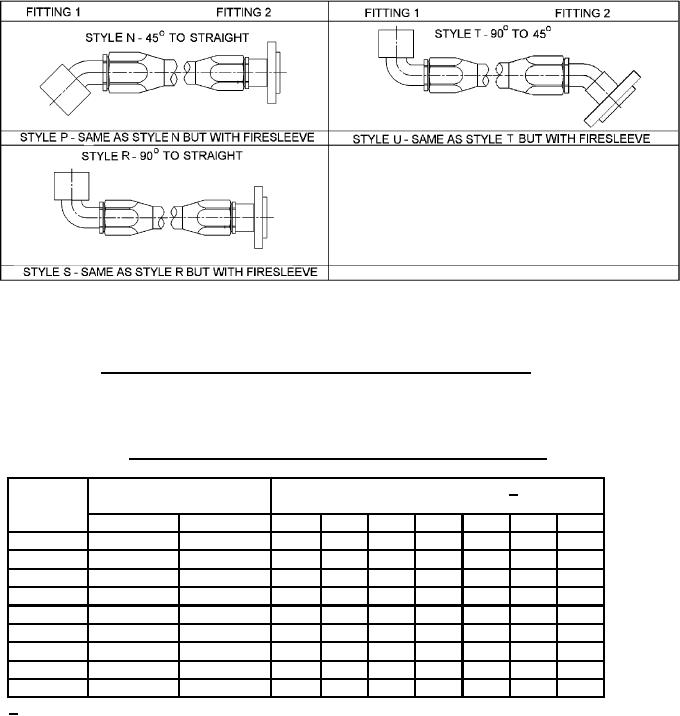

FIGURE 1. Hose assembly styles, field attachable fittings, flareless-to-flange Continued.
Hose cut-off factor (HCOF). HCOF is calculated as shown in table I.
TABLE I. Hose assembly, field attachable fittings, HCOF, styles A thru U.
Fitting ends
MIL-DTL-83797 HCOF 1/
inches verses hose dash size number
MIL-DTL-83798
Style
Fitting 1
Fitting 2
-08
-10
-12
-16
-20
-24
-32
A and B
M83798/4
M83798/7
2.34 2.42 2.62 3.06 3.57 3.67 4.20
C and D
M83798/4
M83798/8
2.41 2.59 2.94 3.47 3.91 4.36 5.03
E and F
M83798/4
M83798/9
2.34 2.56 2.96 3.53 4.03 4.54 5.32
G and H
M83798/5
M83798/8
2.69 2.94 3.47 4.09 4.61 5.11 5.82
J and K
M83798/5
M83798/9
2.62 2.90 3.49 4.15 4.73 5.29 6.11
L and M
M83798/6
M83798/9
2.30 2.54 3.18 3.86 4.46 4.94 5.72
N and P
M83798/5
M83798/7
2.62 2.77 3.15 3.48 4.17 4.42 4.49
R and S
M83798/6
M83798/7
2.30 2.41 2.84 3.38 3.90 4.07 4.60
T and U
M83798/6
M83798/8
2.37 2.58 3.16 3.80 4.34 4.76 6.43
1/ Example of HOCF: for a -08, ½ hose OD, 20-1/2 inch assembly length, style A, the
bulk hose length = 20.50 - the HCOF = 20.50 -2.34 = 18.16. Bulk hose length required
is 18.16 inches.
Hose assembly length. The hose assembly length is calculated as shown on figure 2.
Hose assembly elbow fitting drop height. Elbow fitting drop height B and C is calculated as shown on
figure 2. Drop height dimensions for B and C can be found in the applicable MIL-DTL-83798 slash
sheet as specified in table I herein.
2
