MIL-DTL-83796/5D
NOTE: In the Part or Identifying Number (PIN) add the letter "L" after style for lockwire holes,
example: DL, applicable only to the fitting 1 end.

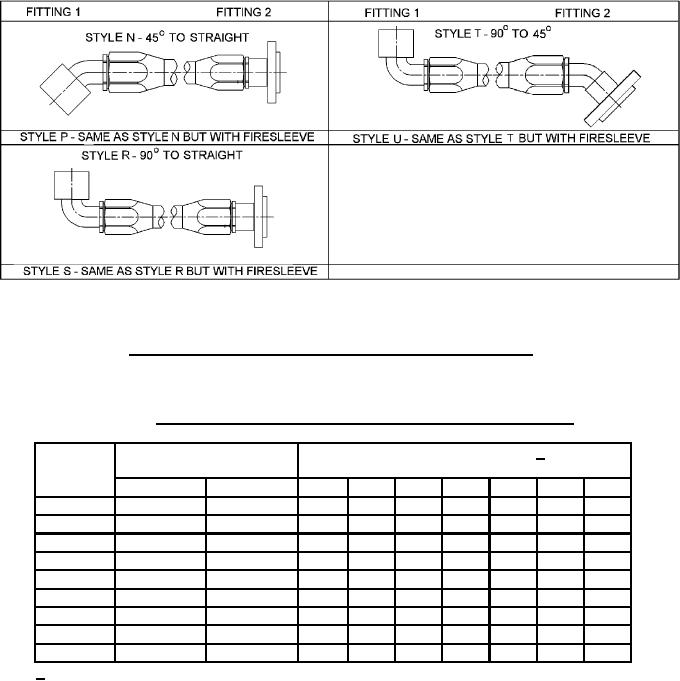

FIGURE 1. Hose assembly styles, field attachable fittings, flare-to-flange - Continued.
Hose cut-off factor (HCOF). HCOF is calculated as shown in table I.
TABLE I. Hose assembly, field attachable fittings, HCOF, styles A thru U.
Fitting ends
MIL-DTL-83797 HCOF 1/
MIL-DTL-83798
inches verses hose dash size number
Style
Fitting 1
Fitting 2
-08
-10
-12
-16
-20
-24
-32
A and B
M83798/1
M83798/7
2.12 2.19 2.36 2.80 3.38 3.30 3.78
C and D
M83798/1
M83798/8
2.19 2.38 2.58 3.21 3.65 3.99 4.61
E and F
M83798/1
M83798/9
2.12 2.32 2.70 3.27 3.77 4.17 4.90
G and H
M83798/2
M83798/8
2.63 2.75 3.29 3.90 4.42 4.82 5.47
J and K
M83798/2
M83798/9
2.46 2.71 3.31 3.96 4.54 5.00 5.76
L and M
M83798/3
M83798/9
2.30 2.54 3.18 3.86 4.46 4.94 5.72
N and P
M83798/2
M83798/7
2.46 2.58 2.97 3.48 3.98 4.13 4.64
R and S
M83798/3
M83798/7
2.30 2.41 2.84 3.38 3.90 4.07 4.60
T and U
M83798/3
M83798/8
2.37 2.58 3.16 3.80 4.34 4.76 6.43
1/ Example of HOCF: for a -08, ½ hose OD, 20-1/2 inch assembly length, style A, the bulk
hose length = 20.50 - the HCOF = 20.50 -2.12 = 18.38. Bulk hose length required is
18.38 inches.
Hose assembly length. The length is calculated as shown on figure 2.
Hose assembly elbow fitting drop height. Elbow fitting drop height B and C is calculated as shown on
figure 2. Drop height dimensions for B and C can be found in the applicable MIL-DTL-83798 slash
sheet as specified in table I herein.
