MIL-DTL-83796/4C

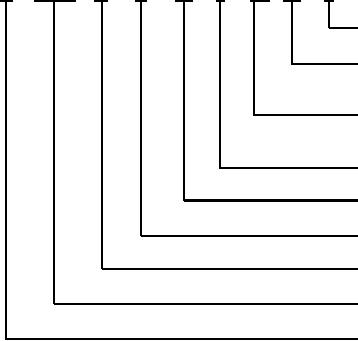

PIN example:
M
83796
/4
H
08
2
GL 06
T
Material/finish code (see table III)
Angle between elbows to be specified in 5°
increments, 30° / 5 = 06 (see figure 3)
Style and lockwire holes "L" if required (see
figure 1)
Length in eighths of an inch (0 through 7)
Length in inches (see figure 2)
Size code (see table II)
Specification sheet number
Specification number
M prefix
M83796/4H082G06T indicates - Hose assembly for 1/2 hose OD, 8 1/4 inches in length, style G, 30°
between elbows, titanium alloy.
M83796/4H082GL06S indicates - Hose assembly for 1/2 hose OD, 8 1/4 inches in length, style G with
lockwire holes, 30° between elbows, corrosion resistant steel.
Cadmium is not recommended. To the users of this document, it is recommended that the use of
carbon steel material with cadmium plating be used only when other materials and finishes specified
in this document cannot meet performance requirements.
Changes from previous issue. Marginal notations are not used in this revision to identify changes
with respect to the previous issue due to the extent of the changes.
Referenced documents. In addition to MIL-DTL-83796, this document references the following:
MIL-A-8625
ASTM B695
SAE-AMS2451/9
MIL-DTL-16232
ASTM F1136/F1136M
SAE-AMS2700
MIL-DTL-81706
SAE-AMS-QQ-P-416
SAE-AS33514
MIL-DTL-83797
SAE-AMS-C-81562
SAE-J517
MIL-DTL-83798
SAE-AMS2417
ASTM B633
SAE-AMS2451/5
8
