INCH-POUND
MIL-DTL-83796/1C
6 August 2014
SUPERSEDING
MIL-DTL-83796/1B
11 August 2008
DETAIL SPECIFICATION SHEET
HOSE ASSEMBLY, RUBBER, LIGHTWEIGHT, MEDIUM PRESSURE,
FIELD ATTACHABLE END FITTINGS, FLARE TO FLARE
This specification is approved for use by all
Departments and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet and
MIL-DTL-83796.
NOTE: In the Part or Identifying Number (PIN) add the letter "L" after style for lockwire holes,
example: DL.

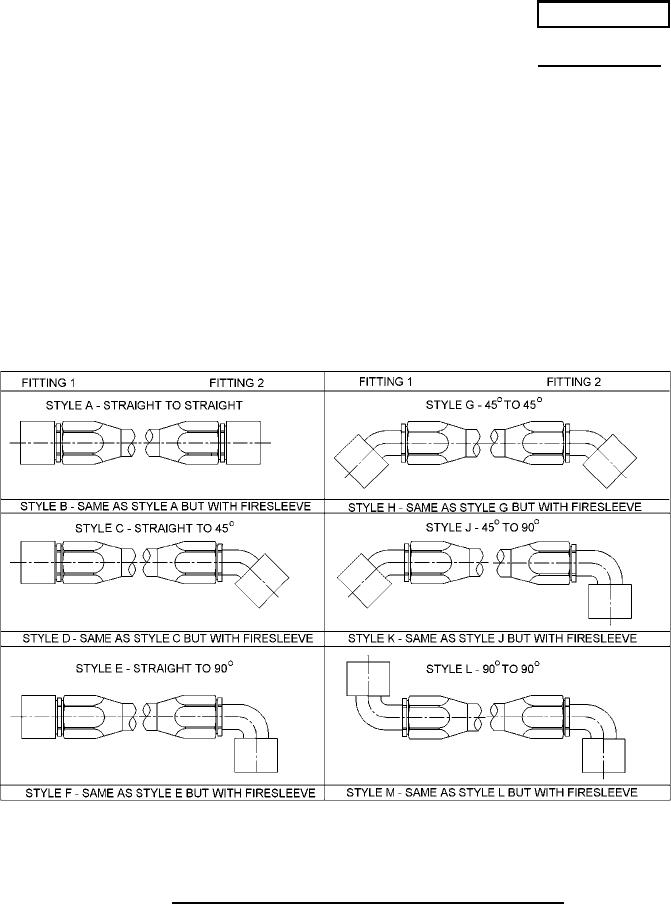

FIGURE 1. Hose assembly styles, field attachable fittings, flare-to-flare.
AMSC N/A
FSC 4720
