MIL-DTL-52471/7B
4 December 2008
SUPERSEDING
MIL-DTL-52471/7A
27 April 1998
DETAIL SPECIFICATION SHEET
HOSE, RUBBER, HYDRAULIC PRESSURE-TYPE, TYPE 100RE
FOUR-SPIRAL-WRAP REINFORCEMENT HOSE
This specification is approved for use by all Departments and
Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet
and MIL-DTL-52471.

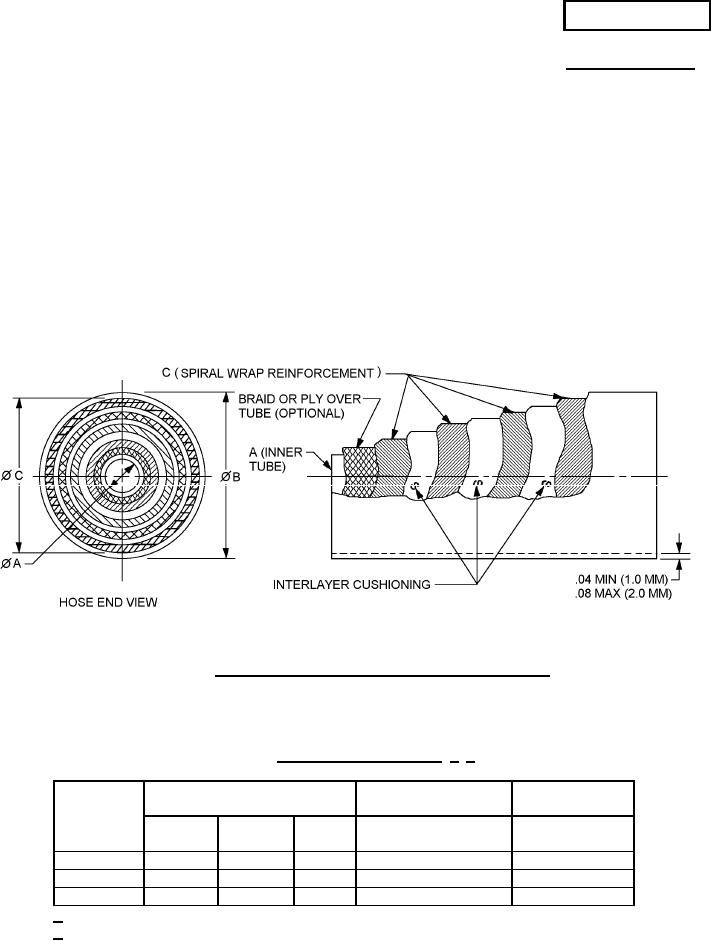

FIGURE 1. Hose: type 100RE, four-spiral-wrap reinforcement.
Operating pressure. Operating pressure as specified in table I.
TABLE I. Hose operating pressure. 1/ 2/
Maximum operating
Minimum
Hose ID
Hose ID
pressure
burst pressure
dash
inch
inch
number
mm
psi (MPa)
psi (MPa)
fraction
decimal
-8
1/2
.500
12.70
7500 (51.7)
30,000 (206.8)
-12
3/4
.750
19.05
6250 (43.1)
25,000 (172.4)
-16
1
1.000
25.40
5000 (34.5)
20,000 (137.9)
1/ Dimensions are in inches.
2/ Metric equivalents are given for information only.
