INCH-POUND
MIL-DTL-52471/4C
4 December 2008
SUPERSEDING
MIL-DTL-52471/4B
27 April 1998
DETAIL SPECIFICATION SHEET
HOSE, RUBBER, HYDRAULIC PRESSURE-TYPE, TYPE 100R1
SINGLE-WIRE-BRAIDED REINFORCEMENT HOSE
This specification is approved for use by all Departments and
Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet
and MIL-DTL-52471.

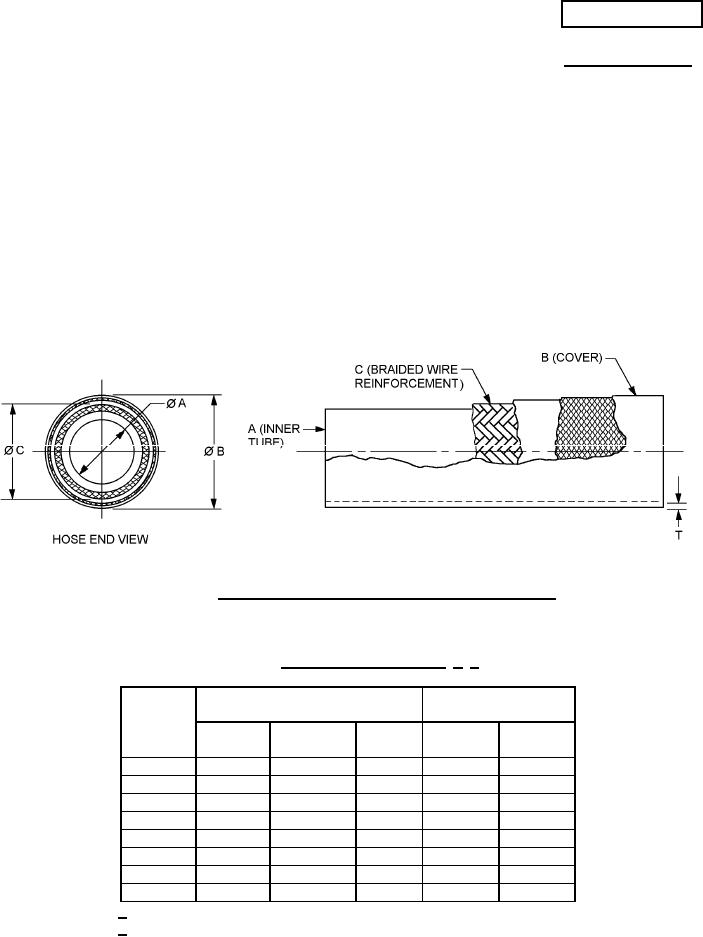

FIGURE 1. Hose: type 100R1, single wire braid reinforcement.
Operating pressure. The operating pressure shall be as specified in table I.
TABLE I. Hose operating pressure. 1/ 2/
Operating pressure
Hose size (ID)
Hose ID
max
dash
inch
inch
number
mm
psi
MPa
fraction
decimal
-4
1/4
.250
6.35
2750
19
-6
3/8
.375
9.53
2250
15.5
-8
1/2
.500
12.70
2000
13.8
-12
3/4
.750
19.05
1250
8.6
-16
1
1.000
25.40
1000
6.9
-20
1-1/4
1.250
31.75
625
4.3
-24
1-1/2
1.500
38.10
500
3.5
-32
2
2.000
50.80
375
2.6
1/ Dimensions are in inches
2/ Metric equivalents are given for information only.
