A-A-59567/7

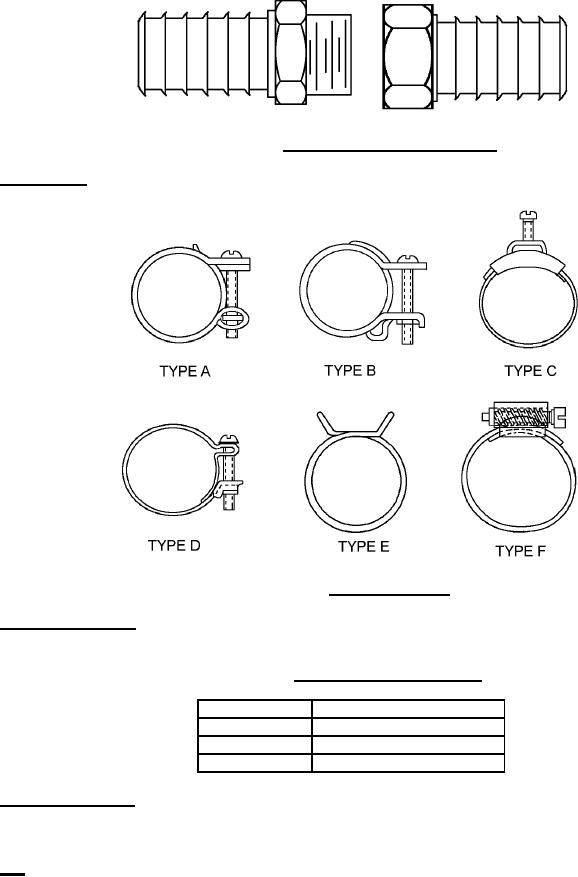

FIGURE 1. Shank type coupler and adapter.
Hose clamps. Hose clamps shall be in accordance with A-A-52506 see figure 2 for types.
FIGURE 2. Hose clamp types.
Compression ferrule. Compression ferrule shall be in accordance with A-A-59614, see table IV for
material designators.
TABLE IV. Ferrule material designators.
Designator
Material
CA
Copper alloy (brass)
R
Corrosion resistant steel
Z
Zinc-coated steel
Clamps and ferrules. Clamps or ferrules shall not extend closer than .062 inch to the end of the shank.
NOTES.
PIN. The PIN should be used for Government purposes to buy commercial products to this CID
specification sheet. See classification information for PIN format example.
