A-A-59567/2

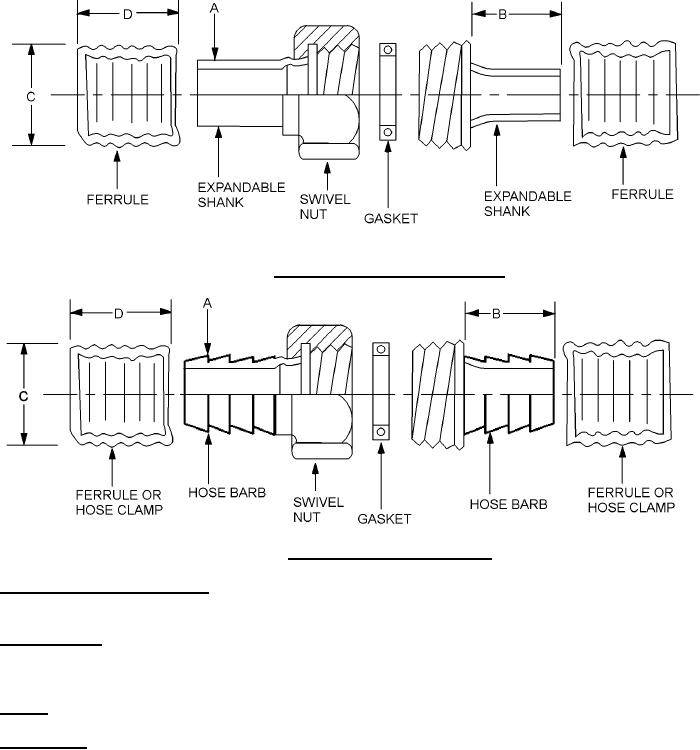

FIGURE 1. Style 5 expansion shank couplings.
FIGURE 2. Style 6 compression couplings.
Couplings type II styles 5 and 6. Type II style 5 and 6 couplings shall be in accordance with
A-A-59614/5 (expansion shank) or A-A-59614/6 (compression ferrule).
Female section. Female section shall have a swivel nut; with gasket. The gasket recess in swivel recess
may be omitted provided the standard commercial gasket does not fall out when the two sections are
disconnected.
Ferrule. Ferrule, excluding type II expansion shank, is required for each male and female section.
Hose clamps. Hose clamps shall be in accordance with A-A-52506 see figure 2 for types.
