INCH-POUND
MIL-DTL-83796/6D
6 August 2014
SUPERSEDING
MIL-DTL-83796/6C
21 June 2010
DETAIL SPECIFICATION SHEET
HOSE ASSEMBLY, RUBBER, LIGHTWEIGHT, MEDIUM PRESSURE,
FIELD ATTACHABLE END FITTINGS, FLARE TO FLANGE,
WITH LOCKWIRE HOLE
This specification is approved for use by all
Departments and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet and
MIL-DTL-83796.
See note at end of figure.

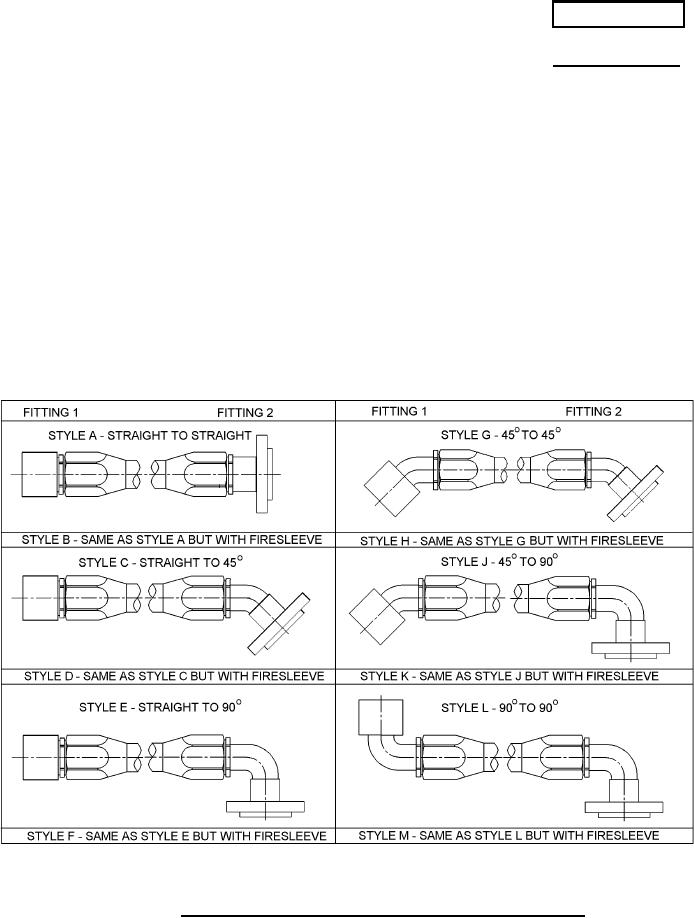

FIGURE 1. Hose assembly styles, field attachable fittings, flare-to-flange.
AMSC N/A
FSC 4720
