MIL-DTL-83796/3C
STYLE J or K
STYLE L or M

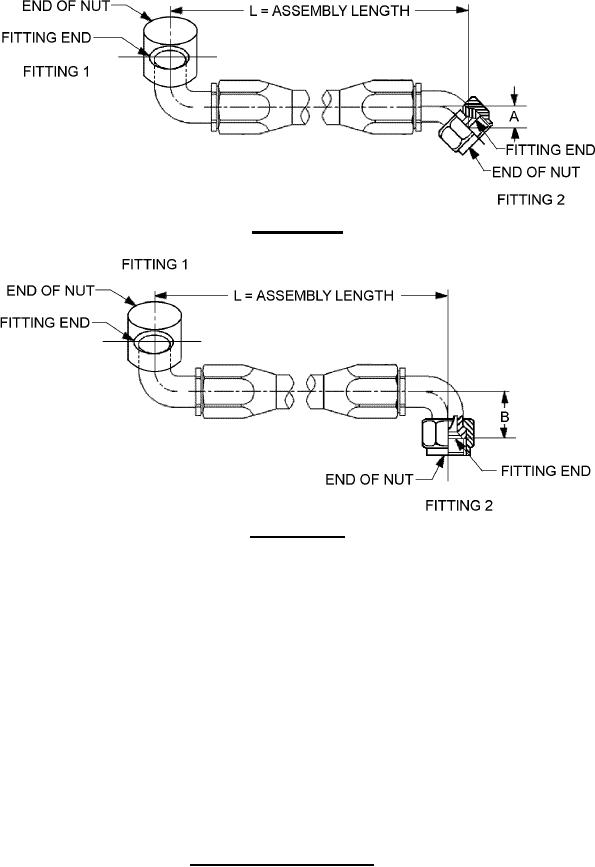

NOTES:
1. For straight hose assembly types the length "L" is to be measured between straight fitting end
along a straight line parallel to hose, with hose laid out horizontally and straight, to straight fitting
end.
2. For straight and 45° hose assembly types the length "L" is to be measured between sealing
surface of fitting end along a straight line parallel to hose, with hose laid out horizontally and
straight, to center line of 45° fitting end.
3. For straight and 90° hose assembly types the length "L" is to be measured between straight
fitting end along a straight line parallel to hose, with hose laid out horizontally and straight, to
center line of 90° fitting.
4. 45° and 90° hose assembly types the length "L" is to be measured between center line of 45°
fitting end along a straight line parallel to hose, with hose laid out horizontally and straight, to
center line of 90° fitting.
5. 90° hose assembly types the length "L" is to be measured between center line of 90° fitting end
along a straight line parallel to hose, with hose laid out horizontally and straight, to center line of
90° fitting end.
FIGURE 2. Hose assembly dimensions - Continued.
