INCH-POUND
MIL-DTL-52471/2C
4 December 2008
SUPERSEDING
MIL-DTL-52471/2B
27 April 1998
DETAIL SPECIFICATION SHEET
HOSE ASSEMBLIES, RUBBER: HYDRAULIC PRESSURE-TYPE;
TYPE 100R2, DOUBLE-WIRE BRAIDED REINFORCEMENT HOSE
This specification is approved for use by all Departments and
Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet
and MIL-DTL-52471.

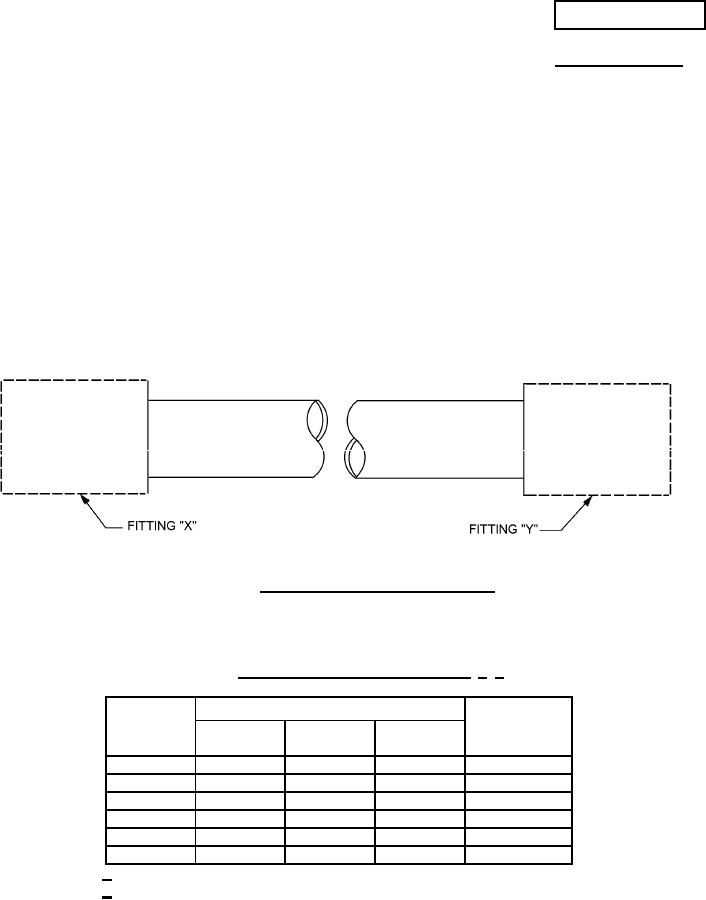

FIGURE 1. Hose assembly, fitting identification.
Operating pressure. Hose assembly shall operate at pressures shown in table I.
TABLE I. Hose assembly operating pressure. 1/ 2/
Hose ID
Operating
Dash
pressure max
inch
inch
number
mm
psi (MPa)
fraction
fraction
-4
1/4
.250
6.35
5000 (34.5)
-6
3/8
.375
9.53
4000 (27.6)
-8
1/2
.500
12.70
3500 (24.1)
-12
3/4
.750
19.05
2250 (15.5)
-16
1
1.000
25.40
2000 (13.8)
-20
1-1/4
1.125
28.58
1625 (11.2)
1/ Dimensions are in inches.
2/ Metric equivalents are given for information only.
Hose assembly code number. The purpose of this slash sheet is to provide hose assembly code
numbers for determining the hose diameter, fitting X, fitting Y, and bend angles (when applicable) as
shown in tables II through VIII. The bend angles are called "style codes" and consist of hose
assembly styles as explained in MIL-DTL-52471.
AMSC N/A
FSC 4720
